Description

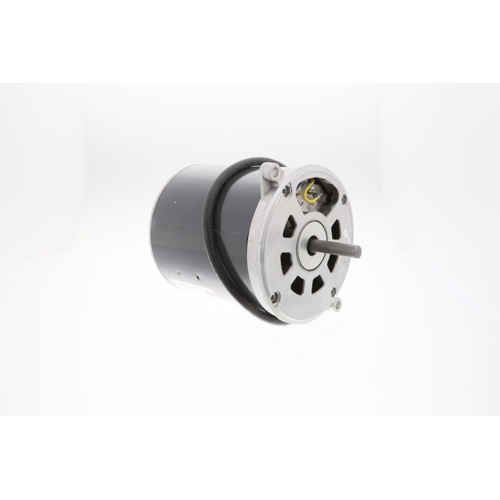

The US Motors 3083 is a purpose-built split phase oil burner motor engineered for reliable, long-service-life performance in residential and light commercial oil-fired heating applications. Featuring a totally enclosed non-ventilated (TENV) enclosure when mounted, this motor is well-protected against dust, oil mist, and the demanding environment found around oil burner assemblies.
Electrical Specifications
- Horsepower: 1/7 HP
- Voltage: 115V AC
- Phase: Single Phase
- Amperage: 2.6 Amps
- Motor Type: Split Phase
Mechanical Specifications
- Speed: 3450 RPM
- NEMA Frame Size: 48M
- Shaft Diameter: 1/2″
- Mount Type: M-Flange Mount
- Bearing Type: Ball Bearing
- Rotation: Reversible
Enclosure & Protection
- Enclosure Type: Totally Enclosed Non-Ventilated (TENV) when mounted
- Designed to resist contamination from oil vapors, dust, and debris common in burner environments
Key Features & Benefits
- Reversible rotation provides installation flexibility for a wide range of oil burner configurations
- Ball bearing construction delivers smooth, quiet operation and extended motor life
- M-Flange mount ensures secure, vibration-resistant attachment to oil burner assemblies
- 48M NEMA frame for straightforward direct replacement of standard oil burner motors
- Single-phase split phase design ideal for residential and light commercial oil heating systems
- Built to US Motors’ exacting quality standards for dependable year-round performance
Application
The US Motors 3083 is designed specifically for use in oil burner applications, making it the ideal replacement motor for residential and light commercial oil-fired furnaces, boilers, and water heaters. Its TENV enclosure, reversible rotation, and M-flange mount make it a versatile, drop-in solution for most standard oil burner setups.
