Description

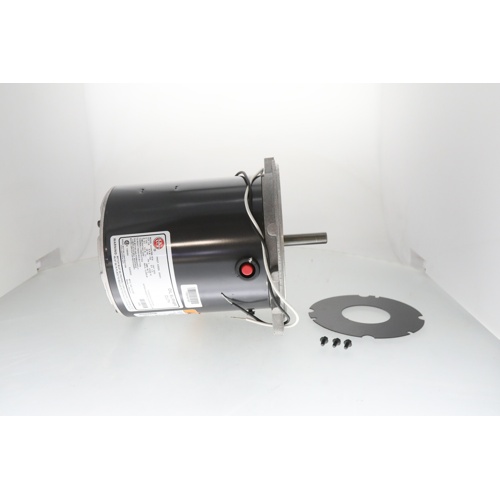

The US Motors 3252 is a dependable split phase oil burner motor engineered for reliable ignition-system performance in residential and light commercial heating applications. Built to exacting standards, this motor delivers consistent torque and long service life in demanding oil burner environments.
Electrical Specifications
- Horsepower: 1/6 HP
- Voltage: 115V AC
- Phase: Single Phase
- Amperage: 3.1 Amps
- Motor Type: Split Phase
Mechanical Specifications
- Speed: 1725 RPM
- NEMA Frame Size: 48N
- Shaft Diameter: 1/2″
- Bearing Type: Ball Bearing
- Mount Type: N-Flange Mount
- Rotation: Reversible
Enclosure & Protection
- Enclosure Type: Totally Enclosed Non-Ventilated (TENV) when mounted
- Designed for oil burner service — resists heat, dust, and oil vapor ingress
Key Features & Benefits
- Reversible rotation for flexible installation configurations
- Ball bearing construction for reduced friction and extended motor life
- N-Flange mount provides secure, direct coupling to oil burner assemblies
- TENV enclosure protects internal components when mounted in burner applications
- 48N NEMA frame ensures broad compatibility with standard oil burner housings
- Split phase design delivers reliable starting torque for oil burner loads
Typical Applications
- Residential and light commercial oil-fired furnaces
- Oil-fired boilers and heating systems
- Direct-drive oil burner assemblies requiring N-flange mounting
