Description

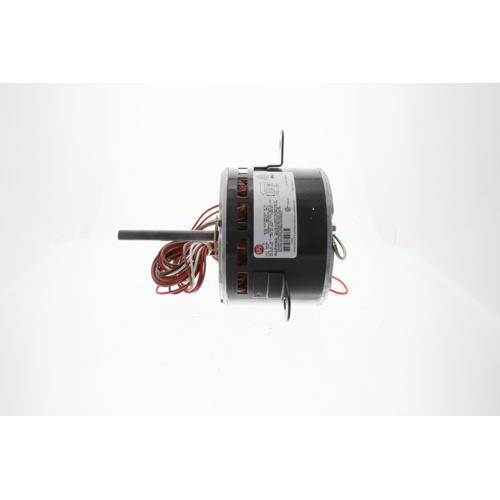

The US Motors 3303 is a heavy-duty condenser fan motor engineered for reliable performance in residential and light commercial HVAC condensing units. Built to exacting standards, this Permanent Split Capacitor (PSC) motor delivers consistent, efficient operation across a wide range of air conditioning and heat pump applications.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Amperage: 2.5 Amps
- Motor Type: Permanent Split Capacitor (PSC)
Performance Specifications
- Horsepower: 1/4 HP
- Speed: 1075 RPM
- Number of Speeds: 2
- Rotation: Reversible
Mechanical Specifications
- NEMA Frame Size: 48Y
- Enclosure Type: Open Air Over (OAO)
- Bearing Type: Self-Aligning Sleeve Bearing
- Mounting Style: Lug Mount
- Shaft Diameter: 1/2 inch
Key Features & Benefits
- Reversible rotation allows flexible installation to match OEM requirements
- Self-aligning sleeve bearing reduces wear and extends service life
- Open Air Over enclosure promotes efficient motor cooling in outdoor condenser environments
- 2-speed operation provides versatile airflow control for improved system efficiency
- 48Y NEMA frame ensures broad OEM cross-reference compatibility for easy replacement
- Lug mount design simplifies installation and secure positioning within the condenser unit
- PSC motor design delivers quiet, energy-efficient operation with high starting torque
The US Motors 3303 condenser fan motor is the trusted choice for HVAC technicians and contractors seeking a dependable, direct-replacement motor. Its combination of reversible rotation, self-aligning sleeve bearing, and standard 48Y frame makes it an ideal fit for a broad range of OEM condenser fan applications. Order from Jackson Systems for fast fulfillment and expert support.
