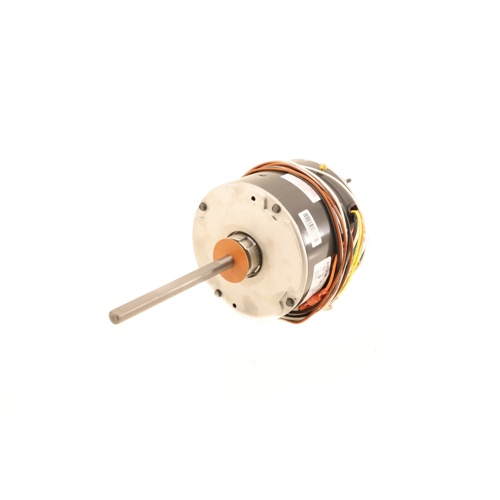

US Motors 3736H Condenser Fan Motor Overview
The US Motors 3736H is a heavy-duty Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable performance in demanding outdoor HVAC applications. Rated at 1/4 horsepower and designed for 460Vac single-phase operation, this motor delivers consistent airflow across condenser coils while standing up to the rigors of continuous outdoor duty.
Key Features
- Permanent Split Capacitor (PSC) motor design for efficient, smooth operation
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from contaminants and moisture
- 48Y NEMA frame size ensures broad OEM and replacement compatibility
- Stud mount configuration for straightforward installation in condenser fan applications
- 6201 bearing provides durable, low-friction operation and extended service life
- Single-phase, 460Vac input suits commercial and light industrial HVAC systems
Electrical & Performance Specifications
- Horsepower: 1/4 HP
- Voltage: 460Vac
- Phase: Single Phase
- Speed: 1075 RPM
- Full Load Amps: 0.8A
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- NEMA Frame Size: 48Y
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Bearing Type: 6201
- Mounting Style: Stud Mount
Application
The 3736H is purpose-built for condenser fan duty in residential and commercial air conditioning and refrigeration equipment. Its TEAO enclosure makes it ideal for outdoor installations where exposure to airborne debris, humidity, and weather is a concern. The 48Y NEMA frame and stud mount design make it a versatile drop-in replacement for a wide range of OEM condenser fan assemblies.
