Description

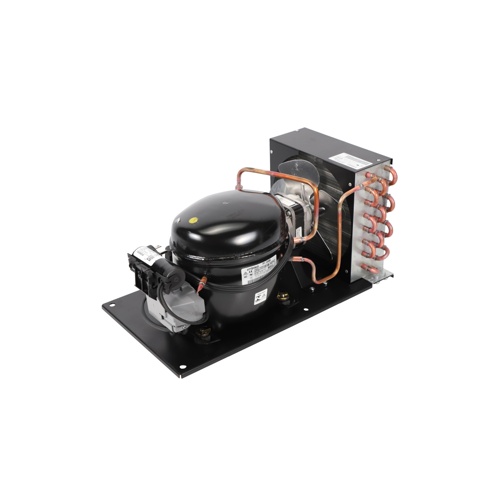

The US Motors 515301351 is a versatile R134a condensing unit engineered for low, medium, and high back pressure refrigeration applications. Running on 115V/60Hz single-phase power, this unit delivers reliable cooling performance across a wide operating range, making it an ideal solution for commercial refrigeration systems including reach-in coolers, display cases, and walk-in applications.
Performance Specifications
- Refrigerant: R134a
- Voltage / Frequency: 115V / 60Hz
- Horsepower: 1/3+ HP
- Capacity @ 20°F: 1,190 BTU/h
- Capacity @ 45°F: 2,785 BTU/h
- Capacity @ 45°F (High): 5,300 BTU/h
- Application Range: Low, Medium, and High Back Pressure
Included Components
- Service valves
- Power cord
- Accumulator
Key Features & Benefits
- Wide BTU/h operating range supports diverse refrigeration load requirements
- Multi-back-pressure capability — suitable for low, medium, and high pressure applications
- R134a refrigerant compatibility for environmentally responsible operation
- Comes factory-equipped with valves, power cord, and accumulator for simplified installation
- Single-phase 115V power supply for easy integration into standard electrical infrastructure
- Compact condensing unit design for flexible field installation
Application
Designed for professional HVAC/R technicians and commercial refrigeration contractors, the US Motors 515301351 condensing unit is well-suited for replacement and new-installation projects requiring a dependable, multi-pressure-range solution. The included accumulator protects the compressor from liquid slugging, while the pre-installed valves and power cord reduce on-site assembly time and labor costs.
