Description

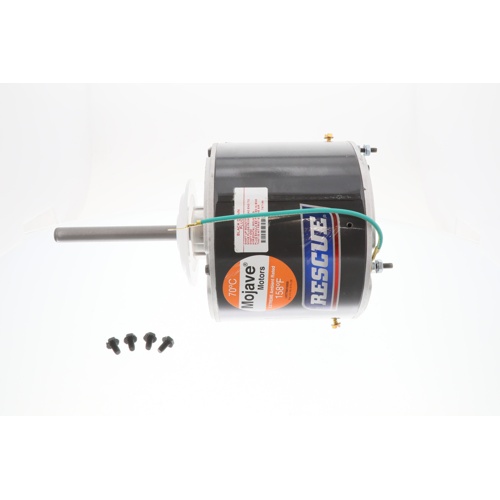

The US Motors 5462H is a heavy-duty Rescue® Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable replacement across a wide range of residential and light commercial air conditioning systems. Its multi-horsepower and 2-speed design makes it a versatile drop-in solution, reducing the need to stock multiple motors.
Motor Overview
Designed as a universal condenser fan motor replacement, the 5462H features a Totally Enclosed Air Over (TEAO) enclosure that protects internal windings from the harsh outdoor environments typical of condenser unit installations. Ball bearings provide long service life and smooth, quiet operation, while the stud mount configuration ensures secure, vibration-resistant installation.
Electrical Specifications
- Voltage: 208–230V AC, Single Phase
- Speed: 1075 RPM, 2-Speed
- Horsepower: 1/3, 1/4, 1/5, or 1/6 HP (multi-HP)
- Amperage: 2.6 / 2.5 / 2.0 / 1.8 Amps
- Motor Type: Rescue® Permanent Split Capacitor (PSC)
Mechanical Specifications
- NEMA Frame Size: 48
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Mount Type: Stud Mount
- Shaft Diameter: 1/2″
- Rotation: Reversible
Key Features
- Multi-horsepower design (1/3–1/6 HP) simplifies inventory and replacement
- 2-speed operation for flexible system compatibility
- Reversible rotation adapts to various OEM configurations
- TEAO enclosure protects against outdoor elements and airborne debris
- Ball bearings deliver extended service life and reduced maintenance
- Stud mount for secure, stable installation on condenser units
- Rescue® PSC technology ensures high efficiency and dependable starting
Applications
Ideal for replacing failed or aging condenser fan motors in residential and light commercial split-system air conditioners and heat pumps. The multi-HP, 2-speed, and reversible-rotation features make the 5462H compatible with a broad range of OEM equipment.
