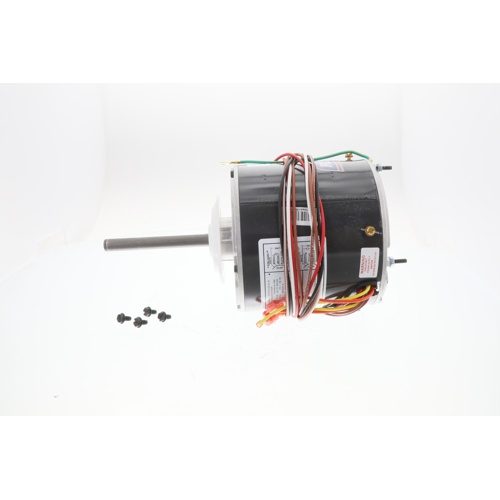

US Motors 5464 Rescue Permanent Split Capacitor Condenser Fan Motor
The US Motors 5464 is a heavy-duty Rescue Permanent Split Capacitor (PSC) condenser fan motor engineered for reliable, long-life performance in residential and light commercial air conditioning and refrigeration applications. Its multi-horsepower, 2-speed design makes it an ideal universal replacement, reducing inventory needs and simplifying service calls.
Key Specifications
- Horsepower: 1/3 – 1/4 – 1/5 – 1/6 HP (multi-horsepower)
- Voltage: 208–230 VAC
- Phase: Single Phase
- Speed: 825 RPM, 2-Speed
- Full Load Amps: 1.9 / 1.5 / 1.2 / 1.0 A
- NEMA Frame Size: 48Y
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Mounting: Stud Mount
- Shaft Diameter: 1/2″
- Rotation: Reversible
- Motor Type: Rescue Permanent Split Capacitor (PSC)
Design & Construction Highlights
- Totally Enclosed Air Over (TEAO) enclosure protects internal windings from moisture, dust, and debris in outdoor condenser environments
- Precision ball bearings deliver smooth, quiet operation and extended service life compared to sleeve-bearing alternatives
- Reversible rotation provides maximum installation flexibility — field-configurable for clockwise or counterclockwise airflow
- 48Y NEMA frame ensures direct cross-compatibility with a wide range of OEM condenser fan motor applications
- Stud mount design simplifies installation and secure attachment to condenser fan assemblies
- 1/2″ shaft diameter accommodates standard condenser fan blade hubs
Rescue Universal Replacement Advantage
As part of the US Motors Rescue line, the 5464 is purpose-built as a universal condenser fan motor replacement. The multi-horsepower rating (1/3, 1/4, 1/5, and 1/6 HP) and 2-speed capability allow a single motor to replace numerous OEM part numbers, minimizing truck stock requirements and getting systems back online faster.
Typical Applications
- Residential central air conditioning condenser units
- Light commercial packaged rooftop units
- Refrigeration condenser fan applications
- OEM condenser fan motor replacement across multiple equipment brands
