Overview

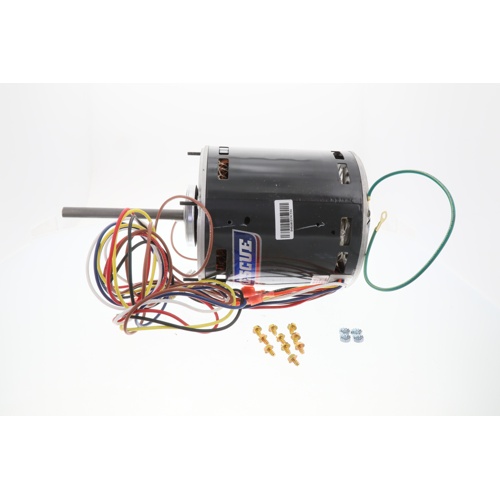

The US Motors 5470 is a Rescue Permanent Split Capacitor (PSC) blower motor engineered for reliable, multi-speed air-handling performance in residential and light-commercial HVAC applications. Designed as a versatile replacement motor, the 5470 covers a wide range of original equipment blower assemblies, reducing the need for multiple SKUs on the service truck.
Key Features
- Motor Type: Rescue Permanent Split Capacitor (PSC)
- Horsepower: Multi-HP — 3/4, 1/2, 1/3, 1/4, and 1/5 HP selectable
- Voltage: 115V AC, Single Phase
- Speed: 1075 RPM, 4-Speed
- Full-Load Amps: 8.1 / 6.6 / 4.6 / 3.8 / 3.1 A (per HP tap)
- NEMA Frame: 48Y
- Enclosure: Open Air Over (OAO)
- Bearing Type: Ball Bearing for long service life and quiet operation
- Shaft Diameter: 1/2 inch
- Rotation: Reversible — field-selectable CW or CCW
- Mounting: Ring or Stud Mount for broad OEM compatibility
Specifications
- SKU: 5470
- Brand: US Motors
- HP Range: 3/4 – 1/5 HP
- Voltage: 115V AC
- Phase: Single Phase
- Speed: 1075 RPM / 4-Speed
- Amperage: 8.1 / 6.6 / 4.6 / 3.8 / 3.1 A
- NEMA Frame: 48Y
- Enclosure: Open Air Over (OAO)
- Bearing: Ball Bearing
- Shaft Size: 1/2″
- Rotation: Reversible
- Mount Type: Ring or Stud
- Motor Technology: Rescue Permanent Split Capacitor (PSC)
Why Choose the US Motors 5470?
The Rescue PSC platform is a trusted industry standard for blower motor replacement. The multi-HP, multi-speed design consolidates inventory and simplifies field service — one motor covers a broad range of OEM applications. Ball bearings deliver quieter operation and extended motor life compared to sleeve-bearing alternatives, while the reversible rotation and dual-mount options ensure compatibility across a wide variety of furnace and air-handler blower assemblies.
