Description

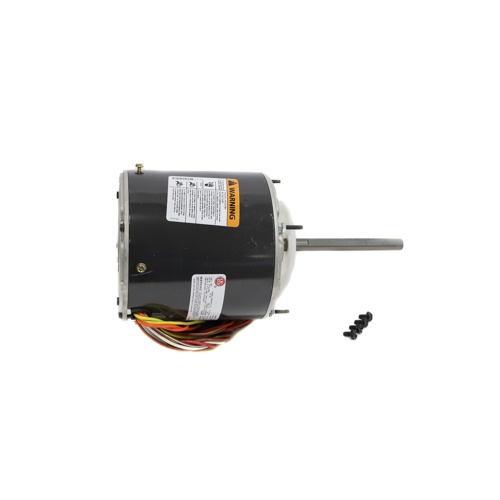

US Motors 5480H Multi-HP Blower Motor Overview
The US Motors 5480H is a multi-horsepower PSC blower motor engineered for dependable performance in commercial and residential HVAC air-handling applications. Rated at 1/2 to 1/6 HP with a 460-volt, single-phase power supply, this motor delivers consistent, efficient airflow at 1075 RPM — making it an ideal replacement or upgrade for fan coil units, air handlers, and furnace blower assemblies that require a 48Y-frame motor.
Key Features
- Multi-horsepower design: 1/2 – 1/6 HP for versatile application flexibility
- 460V, 1-Phase power supply for commercial-grade installations
- Standard 48Y frame for broad OEM compatibility
- 1075 RPM operating speed optimized for blower and fan coil applications
- US Motors quality construction for long service life and reliable operation
- Designed as a direct replacement in a wide range of HVAC equipment
Specifications
- Brand: US Motors
- SKU: 5480H
- Horsepower: 1/2 – 1/6 HP
- Voltage: 460V
- Phase: 1-Phase
- Frame: 48Y
- Speed: 1075 RPM
Applications
The 5480H is well-suited for use in air handlers, fan coil units, and HVAC blower assemblies where a 48Y-frame, single-phase motor operating at 1075 RPM is required. Its multi-HP rating provides added flexibility for technicians servicing a variety of equipment configurations.
