Description

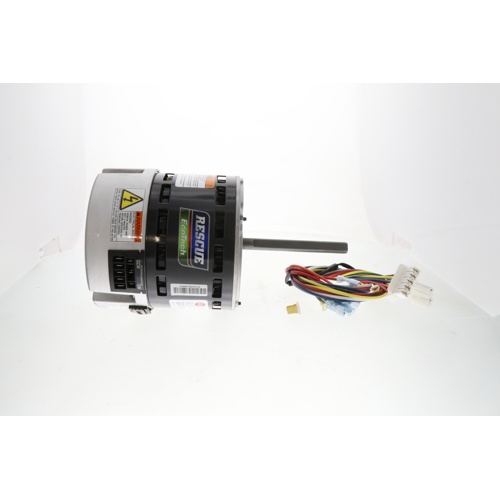

The US Motors 5522ET is a reliable, single-phase blower motor engineered for demanding HVAC air-handling applications. Built around a 48Y NEMA frame and featuring a durable ball bearing design, this motor delivers consistent performance in residential and light commercial systems.
Key Features
- Dual horsepower rating: 1/3 HP and 1/5 HP for flexible application use
- Multi-voltage operation: 115V and 208-230V single-phase compatibility
- 1075 RPM operating speed for smooth, efficient airflow delivery
- Amperage ratings: 4.0A (115V) / 3.0–2.6A (208-230V)
- 48Y NEMA frame size for broad OEM and replacement compatibility
- Open Air Over (OAO) enclosure for effective motor cooling in airstream applications
- Ball bearing construction for long service life and reduced maintenance
- Belly band mount for easy installation and secure positioning
Specifications
- SKU: 5522ET
- Brand: US Motors
- Horsepower: 1/3–1/5 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Speed: 1075 RPM
- Amperage: 4.0A @ 115V / 3.0–2.6A @ 208-230V
- Frame: 48Y NEMA
- Enclosure: Open Air Over (OAO)
- Bearing Type: Ball Bearing
- Mount Type: Belly Band
Applications
The 5522ET is ideal as a direct replacement or new-installation blower motor in furnaces, air handlers, fan coil units, and other forced-air HVAC equipment where a 48Y frame belly band mount motor is specified. Its multi-voltage capability makes it suitable for a wide range of electrical service configurations.
