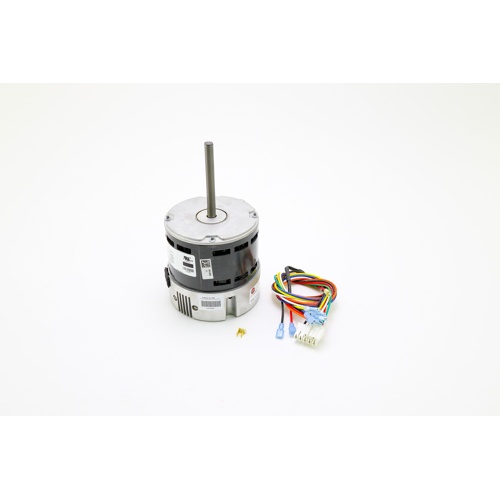

US Motors 5532ET Rescue Permanent Split Capacitor Blower Motor Overview
The US Motors 5532ET is a heavy-duty Rescue Permanent Split Capacitor (PSC) blower motor engineered for reliable HVAC replacement applications. Designed to serve as a universal retrofit solution, this variable-speed motor delivers consistent airflow performance across a wide range of residential and light commercial heating and cooling systems.
Electrical Specifications
- Horsepower: 1/2–1/4 HP (variable speed)
- Voltage: 115/208–230 Vac
- Phase: Single Phase
- Speed: 1075 RPM
- Amperage: 5.9 / 4.6–3.9 Amps
- Motor Type: Rescue Permanent Split Capacitor (PSC)
Mechanical Specifications
- NEMA Frame Size: 48Y
- Enclosure Type: Open Air Over (OAO)
- Bearing Type: Ball Bearing
- Mounting Style: Belly Band Mount
- Shaft Diameter: 1/2 inch
- Rotation: Reversible
Key Features & Benefits
- Variable speed operation allows flexible HP and amperage selection to match system requirements
- Reversible rotation simplifies installation and reduces the need for multiple SKUs on the service truck
- Ball bearing construction provides long service life and reduced friction under continuous operation
- Belly band mount design ensures secure, vibration-resistant installation in a wide variety of blower housings
- Open Air Over (OAO) enclosure promotes motor cooling during operation
- 48Y NEMA frame ensures broad compatibility with standard residential and light commercial air handler and furnace blower assemblies
- Dual voltage rating (115/208–230V) makes this motor adaptable to both single-voltage and dual-voltage electrical systems
- Rescue PSC design is engineered as a direct cross-reference replacement for a wide range of OEM blower motors
Typical Applications
- Residential and light commercial furnace blower replacement
- Air handler blower motor retrofit
- Fan coil unit blower motor replacement
- HVAC system upgrades requiring a versatile, multi-speed PSC motor
