Description

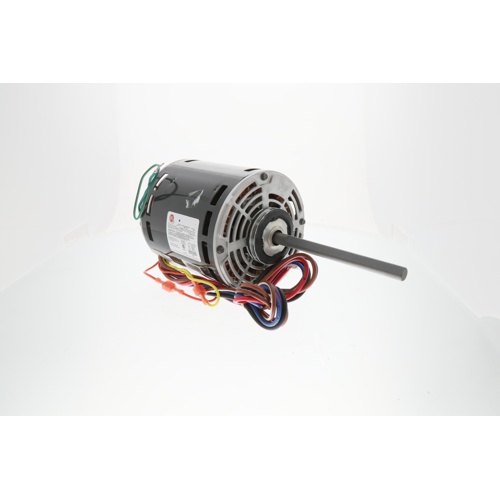

The US Motors 5847 is a heavy-duty direct drive fan and blower motor engineered for reliable performance in commercial and residential HVAC air-handling applications. Built around a Permanent Split Capacitor (PSC) design, this motor delivers smooth, efficient operation across three selectable speeds — making it an ideal replacement or upgrade motor for fan coil units, air handlers, and blower assemblies.
Electrical Specifications
- Horsepower: 3/4 HP
- Voltage: 277 Vac, Single Phase
- Full Load Amps: 4.1 A
- Speed: 1075 RPM, 3-Speed
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- NEMA Frame Size: 48YZ
- Enclosure Type: Open Air Over (OAO)
- Bearing Type: Ball Bearing
- Mounting Style: Ring Mount
- Shaft Diameter: 1/2″
- Rotation: Reversible
Key Features & Benefits
- Three selectable speeds for flexible airflow control and system balancing
- Ball bearing construction for long service life and reduced maintenance
- Reversible rotation allows for versatile installation configurations
- Open Air Over enclosure promotes efficient motor cooling in moving-air environments
- Ring mount design simplifies installation and replacement in standard housings
- PSC motor design delivers quiet, energy-efficient operation
- 277 Vac rating suits commercial building electrical systems
Typical Applications
- Fan coil units
- Air handlers and blower assemblies
- Direct drive ventilation fans
- Commercial HVAC blower replacements
