Description

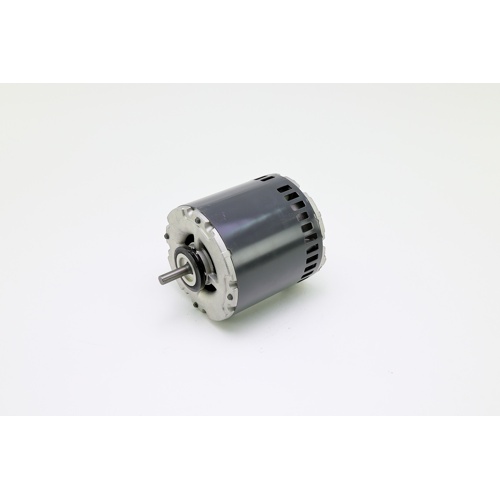

The US Motors 6765 is a heavy-duty, two-speed split phase blower motor engineered for reliable performance in residential and light commercial HVAC air-handling applications. Built to exacting standards, this motor delivers dependable airflow control across two distinct operating speeds, making it an ideal direct replacement or upgrade for a wide range of blower assemblies.
Electrical Specifications
- Voltage: 115V AC
- Phase: Single Phase
- Motor Type: Split Phase
- Speeds: 2-Speed
- Full Load Amps: 7.5A (High) / 4.0A (Low)
- Horsepower: 1/2 HP (High Speed) / 1/6 HP (Low Speed)
Mechanical Specifications
- RPM: 1725 (High Speed) / 1140 (Low Speed)
- NEMA Frame Size: 56YZ
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: 6203
- Mount Style: Ring Mount
Key Features & Benefits
- Two-speed operation allows flexible airflow management for heating and cooling modes
- Split phase design provides reliable starting torque for blower applications
- 56YZ NEMA frame ensures broad compatibility with standard blower housings
- Open drip-proof enclosure protects internal components from dripping liquids in typical indoor installations
- 6203 precision bearing supports smooth, low-noise operation and extended service life
- Ring mount configuration simplifies installation and secure positioning within blower assemblies
- Built by US Motors, a trusted name in HVAC motor manufacturing
Typical Applications
- Residential and light commercial air handlers
- Furnace blower assemblies
- Fan coil units
- HVAC blower replacement applications requiring 56YZ frame compatibility
