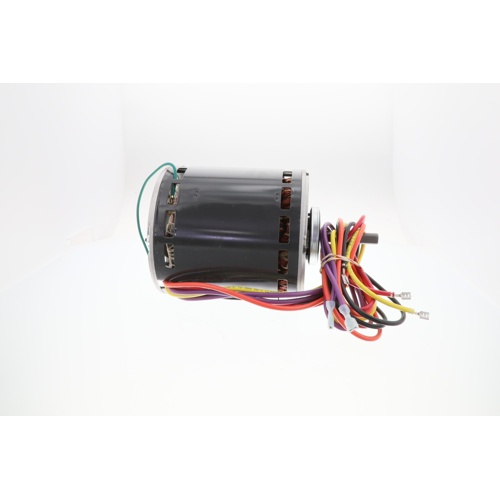

US Motors 8064 Blower Motor Overview
The US Motors 8064 is a heavy-duty permanent split capacitor (PSC) blower motor engineered for dependable performance in residential and light commercial HVAC air-handling applications. With a 1/2 HP output and three selectable speed taps, this motor delivers flexible airflow control to match a wide range of system requirements.
Key Specifications
- Horsepower: 1/2 HP
- Voltage: 208–230V AC
- Phase: Single Phase
- Speed: 825 RPM, 3-Speed
- Full Load Amps: 4.4 A
- NEMA Frame Size: 48Y
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: SAB (Sleeve and Ball)
- Mounting Style: Hub Mount
- Motor Type: Permanent Split Capacitor (PSC)
Design & Construction
Built around a 48Y NEMA frame, the 8064 is designed for direct hub-mount installation into blower assemblies, ensuring a secure, vibration-resistant fit. The open drip-proof enclosure protects internal windings from dripping liquids while maintaining excellent airflow for motor cooling — ideal for indoor air handler and furnace blower applications. SAB bearings provide a combination of sleeve and ball bearing technology, balancing quiet operation with long service life.
Performance & Flexibility
The three-speed configuration allows technicians to select the appropriate airflow tap — high, medium, or low — to optimize system static pressure and comfort delivery. Operating on standard 208–230V single-phase power, the 8064 integrates seamlessly into most residential and light commercial HVAC systems without additional electrical modifications.
Application
- Residential and light commercial air handlers
- Forced-air furnace blower assemblies
- Multi-speed HVAC blower replacement applications
- Systems requiring 48Y hub-mount PSC motors
Why Choose US Motors
US Motors (a Nidec brand) is a trusted name in HVAC motor manufacturing, known for producing motors that meet rigorous quality and efficiency standards. The 8064 is a reliable drop-in replacement that helps restore system performance quickly and confidently.
