Description

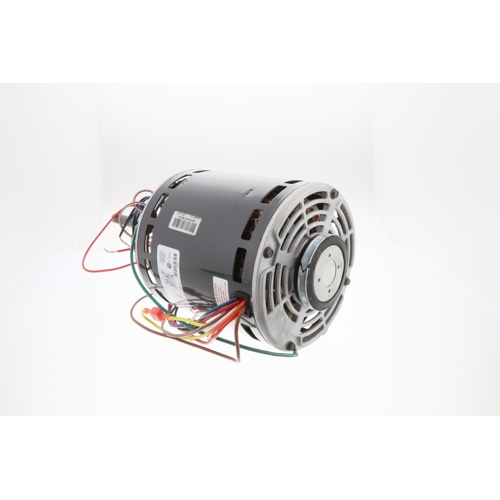

The US Motors 8907 is a heavy-duty Permanent Split Capacitor (PSC) blower motor engineered for reliable, efficient performance in residential and light commercial HVAC air-handling applications. With a robust 1 HP output and three selectable speed taps, this motor delivers the versatility needed to match airflow requirements across a wide range of fan coil units, air handlers, and furnace blower assemblies.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Full Load Amps: 5.6 A
- Motor Type: Permanent Split Capacitor (PSC)
Mechanical Specifications
- Horsepower: 1 HP
- Speed: 1075 RPM, 3-Speed
- NEMA Frame Size: 48Y
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing for long service life and reduced maintenance
- Mounting Style: Band or Hub Mount for flexible installation
Key Features & Benefits
- Three-speed operation allows precise airflow matching for heating, cooling, and continuous fan modes
- Ball bearing construction provides extended motor life and quiet, smooth operation
- Open Drip-Proof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments
- 48Y NEMA frame ensures broad OEM and aftermarket compatibility
- Band or hub mount design simplifies installation in a variety of blower housings
- PSC motor design delivers energy-efficient, high-torque starting performance
- 208–230V rating accommodates common residential and commercial power supply voltages
Typical Applications
- Residential and commercial air handlers
- Fan coil units
- Furnace blower assemblies
- Central air conditioning systems
