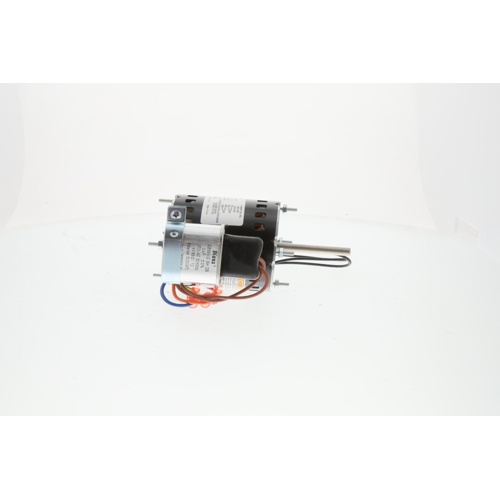

US Motors 9632 — Permanent Split Capacitor Motor Overview
The US Motors 9632 is a heavy-duty Permanent Split Capacitor (PSC) motor engineered for reliable performance in demanding HVAC and air-handling applications. Built around a Totally Enclosed Air Over (TEAO) design, this motor is purpose-built for use in airstreams where the motor is cooled by the air it moves — making it an ideal choice for evaporator fan and condenser fan duty in commercial and industrial equipment.
Key Specifications
- Horsepower: 1/3 HP
- Voltage: 115 VAC
- Phase: Single Phase
- Speed: 850 RPM
- Speeds: 1
- Full Load Amps: 5.0 A
- Frame Size: Y56Z
- Enclosure: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Mounting: Cushion Base
- Shaft Dimensions: 2 3/8″ x 3/4″ x 2 3/8″
- Rotation: Reversible
- Motor Type: Permanent Split Capacitor (PSC)
Design & Construction Highlights
- Totally Enclosed Air Over (TEAO) enclosure — protects internal windings from dust, moisture, and debris while relying on the moving airstream for cooling
- Ball bearings — provide smooth, low-friction operation and extended service life compared to sleeve-bearing alternatives
- Cushion base mounting — absorbs vibration and reduces noise transmission to the equipment structure
- Reversible rotation — offers installation flexibility; rotation direction can be configured in the field to suit the application
- Permanent Split Capacitor (PSC) design — delivers efficient, quiet operation with good starting torque characteristics suitable for fan and blower loads
- Y56Z frame — industry-standard frame sizing ensures broad compatibility with OEM and replacement applications
Typical Applications
- Evaporator fan motors in refrigeration and HVAC equipment
- Condenser fan duty in commercial air conditioning units
- Air handling unit (AHU) fan drives
- Walk-in cooler and freezer evaporator fans
- OEM replacement and aftermarket motor upgrades
Why Choose the US Motors 9632?
US Motors is a trusted name in the HVAC and refrigeration industry, known for producing motors that meet rigorous quality and performance standards. The 9632 combines a robust TEAO enclosure with precision ball bearings and a versatile cushion base to deliver dependable, long-lasting service in airstream environments. Its reversible rotation and standard Y56Z frame make it a go-to replacement motor for a wide range of commercial and light industrial fan applications.
