Description

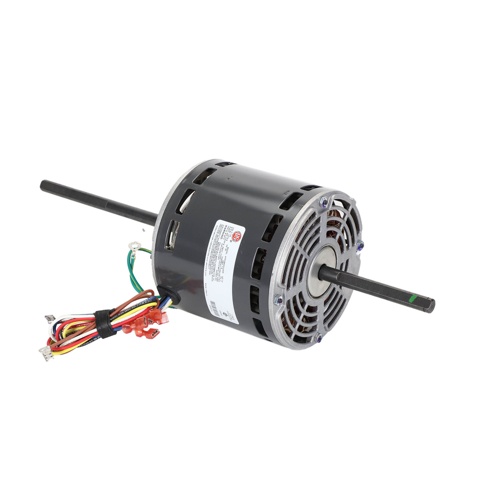

The US Motors CA3414 is a purpose-built condenser fan motor engineered to deliver dependable, efficient performance in residential and light commercial HVAC condensing units. Featuring a Permanent Split Capacitor (PSC) motor design, the CA3414 provides smooth, quiet operation and excellent energy efficiency — making it a trusted choice for OEM replacements and field service applications alike.
Key Features
- Permanent Split Capacitor (PSC) motor design for efficient, low-noise operation
- 1/2 HP output for reliable condenser fan drive performance
- 115Vac operating voltage for compatibility with standard single-phase power supplies
- 1075 RPM operating speed optimized for condenser airflow requirements
- Counter-Clockwise (CCW) rotation from the lead end for proper condenser fan blade direction
- Designed for use in air conditioning condensing units and heat pump outdoor sections
- Durable construction built to withstand outdoor operating environments
Specifications
- Brand: US Motors
- SKU: CA3414
- Motor Type: Permanent Split Capacitor (PSC)
- Horsepower: 1/2 HP
- Voltage: 115Vac
- Speed: 1075 RPM
- Rotation: Counter-Clockwise (CCW) from Lead End
- Application: Condenser Fan Motor
Application
The CA3414 is ideally suited for replacement and service applications in residential and light commercial air conditioning condensing units and heat pump outdoor sections. Its PSC motor topology eliminates the need for a starting capacitor, simplifying installation and reducing component count. Always verify rotation direction, shaft specifications, and capacitor requirements before installation to ensure proper system compatibility.
