Description

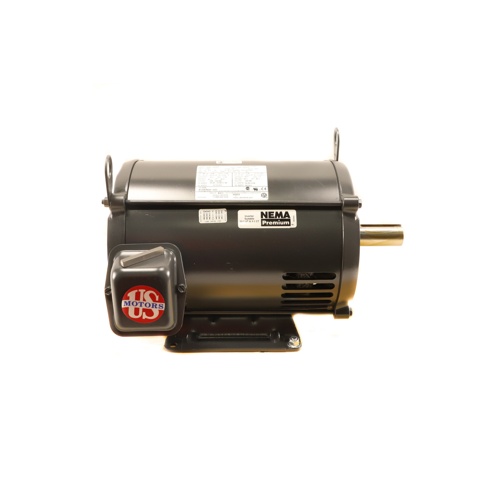

US Motors D10P2D Commercial Blower Motor Overview
The US Motors D10P2D is a heavy-duty commercial blower motor engineered for demanding HVAC and industrial air-handling applications. Delivering 10 horsepower with a robust three-phase design, this motor provides reliable, efficient performance in large-scale blower and fan systems.
Key Electrical Specifications
- Horsepower: 10 HP
- Voltage: 208-230/460 VAC (dual voltage)
- Phase: Three Phase
- Full Load Amps: 26.3–23.8 A (low voltage) / 11.9 A (high voltage)
- Speed: 1765 RPM
Motor Construction & Design
- NEMA Frame Size: 215T
- Enclosure Type: Open Drip-Proof (ODP) — suitable for indoor and protected outdoor installations
- Bearing: 6205-2Z-J/C3 — shielded ball bearing for long service life and reduced maintenance
- Mounting: Horizontal Footed Mount for secure, stable installation
Application & Benefits
The D10P2D is purpose-built for commercial and industrial blower duty, making it an ideal replacement or upgrade motor for large air handlers, commercial HVAC systems, and industrial ventilation equipment. The dual-voltage capability (208-230/460 VAC) provides installation flexibility across a wide range of electrical service configurations. The Open Drip-Proof enclosure protects internal windings from dripping liquids and falling debris, while the 6205-2Z-J/C3 shielded bearing with C3 clearance ensures reliable operation under varying thermal conditions. The standard 215T NEMA frame ensures direct cross-compatibility with OEM and aftermarket applications.
Why Choose the US Motors D10P2D
- Dual-voltage design simplifies installation across 208-230V and 460V systems
- Three-phase operation delivers smooth, efficient power for continuous-duty blower applications
- 215T NEMA frame ensures broad OEM and aftermarket compatibility
- ODP enclosure balances ventilation and protection for indoor commercial environments
- C3 bearing clearance accommodates thermal expansion for extended motor life
- Horizontal footed mount provides a stable, vibration-resistant installation base
