Description

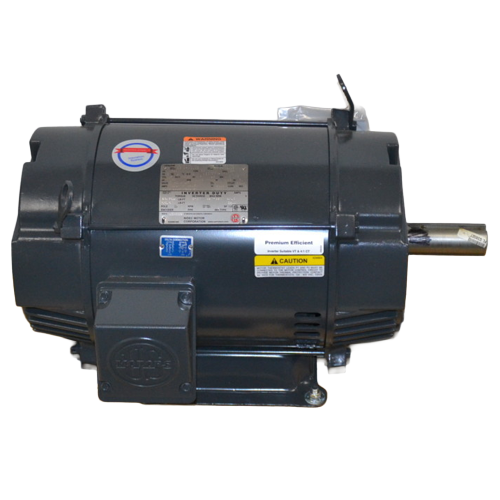

The US Motors D15V2B is a heavy-duty definite purpose motor engineered for reliable performance in demanding commercial and industrial HVAC applications. Designed to deliver consistent power output across a wide range of driven equipment, this motor is a trusted choice for contractors and mechanical engineers who need dependable, long-lasting performance.
Key Specifications
- Horsepower: 15 HP
- Voltage: 230/460 VAC
- Phase: Three Phase
- Speed: 1775 RPM (1 Speed)
- Full Load Amps: 18.6 A (460V) / 37 A (230V)
- NEMA Frame Size: 254T
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Design & Construction
The D15V2B features an Open Drip-Proof (ODP) enclosure that allows for ventilation while protecting internal components from dripping liquids falling at angles up to 15 degrees from vertical — ideal for indoor installations in clean, dry environments. Ball bearings provide smooth, low-friction operation and extended service life under continuous-duty conditions. The 254T NEMA frame ensures dimensional interchangeability with other NEMA-standard motors for straightforward replacement and installation.
Electrical & Performance Features
- Dual voltage design (230/460V) for flexible installation across different electrical service configurations
- Three-phase power for efficient, balanced load operation
- 1775 RPM synchronous-class speed suitable for direct-drive and belt-drive applications
- Reversible rotation for versatile equipment configurations
- Single-speed operation for straightforward control integration
Applications
The US Motors D15V2B is well-suited for a variety of HVAC and industrial applications including:
- Air handling units (AHUs)
- Centrifugal fans and blowers
- Pumps and compressors
- Commercial refrigeration equipment
- Industrial process equipment
Why Choose US Motors?
US Motors (a Nidec brand) has a long-standing reputation for manufacturing high-quality motors built to NEMA standards. The D15V2B reflects that legacy with robust construction, precise engineering, and the reliability that HVAC professionals depend on for critical system components.
