Description

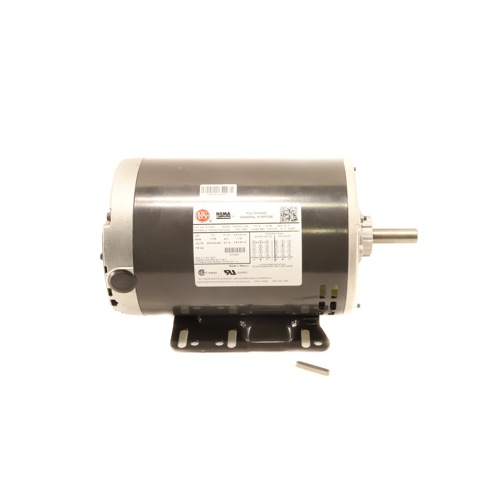

The US Motors D1P2AH is a heavy-duty, general purpose three-phase induction motor engineered for reliable performance in demanding HVAC and industrial applications. Built to NEMA 56H frame standards, this motor delivers consistent, efficient power across a wide range of equipment including fans, blowers, pumps, and compressors.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 3.8-3.6/1.8 Amps
- Horsepower: 1 HP
Mechanical Specifications
- Speed: 1725 RPM
- NEMA Frame Size: 56H
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: 6203
- Mount Type: Rigid Mount
Key Features & Benefits
- Dual-voltage winding (208-230/460V) provides installation flexibility across a variety of electrical systems
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids and falling debris in indoor or sheltered environments
- NEMA 56H frame ensures direct cross-compatibility and easy drop-in replacement for standard frame motors
- 6203 bearing delivers smooth, low-friction operation and extended service life
- Rigid mount design provides secure, vibration-resistant installation
- 1725 RPM synchronous speed suits a broad range of HVAC fan and blower applications
- Manufactured by US Motors, a trusted name in commercial and industrial motor solutions
Typical Applications
- HVAC air handlers and blower assemblies
- Commercial fans and ventilation equipment
- Pumps and compressors
- General industrial machinery
