Description

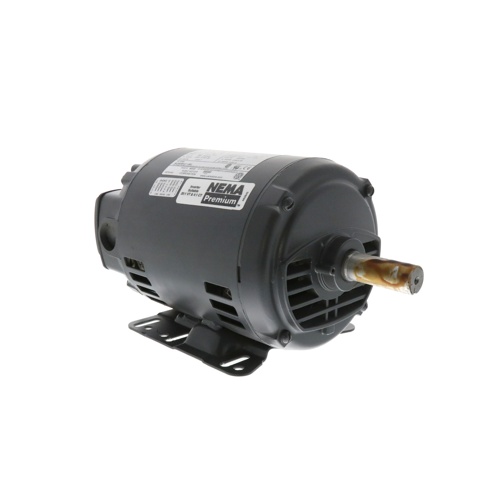

The US Motors D1P2D is a heavy-duty general purpose three-phase motor engineered for reliable performance across a wide range of commercial and industrial HVAC and mechanical applications. Built to NEMA standards and backed by US Motors’ proven quality, this motor delivers consistent power output and long service life.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 3.2-3.1 A (208-230V) / 1.6 A (460V)
- Speeds: 1 Speed
Mechanical Specifications
- Horsepower: 1 HP
- RPM: 1760 (60 Hz) / 1445 (50 Hz)
- NEMA Frame Size: 143T
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Key Features & Benefits
- Dual-voltage winding (208-230/460V) for flexible installation across common commercial power supplies
- Open Drip Proof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments
- Ball bearing construction ensures smooth, low-friction operation and extended motor life
- Reversible rotation provides installation versatility for a variety of driven equipment configurations
- 143T NEMA frame ensures dimensional compatibility with standard motor mounts and couplings
- Rigid mount design for secure, vibration-resistant installation
- Dual-frequency rated at 1760 RPM (60 Hz) and 1445 RPM (50 Hz) for broad application flexibility
Typical Applications
- Commercial HVAC fan and blower drives
- Pumps and compressors
- Conveyor and material handling equipment
- General industrial machinery
