Description

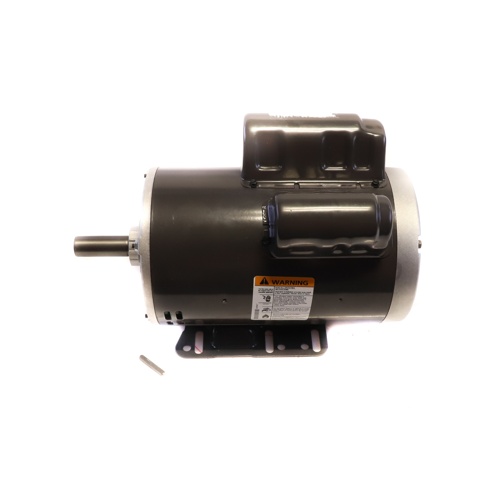

The US Motors D2C2J14 is a reliable general purpose single-phase motor engineered for a wide range of commercial and industrial HVAC and mechanical applications. Built to NEMA standards with a 145T frame, this motor delivers consistent 2 HP output at 1725 RPM, making it an ideal drop-in replacement or new-installation choice for fans, blowers, pumps, compressors, and other driven equipment.
Electrical Specifications
- Voltage: 115/208-230 VAC
- Phase: Single Phase
- Full Load Amps: 20.0 A (115V) / 11.3–10.0 A (208-230V)
- Speed: 1725 RPM
- Number of Speeds: 1
Mechanical Specifications
- Horsepower: 2 HP
- NEMA Frame Size: 145T
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: CCW (Counter-Clockwise), Lead End
Key Features & Benefits
- NEMA 145T frame for easy cross-referencing and direct replacement compatibility
- Open Drip Proof (ODP) enclosure protects against dripping liquids in non-hazardous environments
- Ball bearings provide long service life and reduced maintenance requirements
- Dual-voltage capability (115V or 208-230V) offers installation flexibility
- Rigid mount design ensures secure, vibration-resistant installation
- CCW lead-end rotation suits a broad range of fan and blower configurations
- Single-speed operation for straightforward, dependable performance
Typical Applications
- HVAC blowers and fans
- Pumps and compressors
- Commercial refrigeration equipment
- General industrial machinery
- Agricultural and light manufacturing equipment
