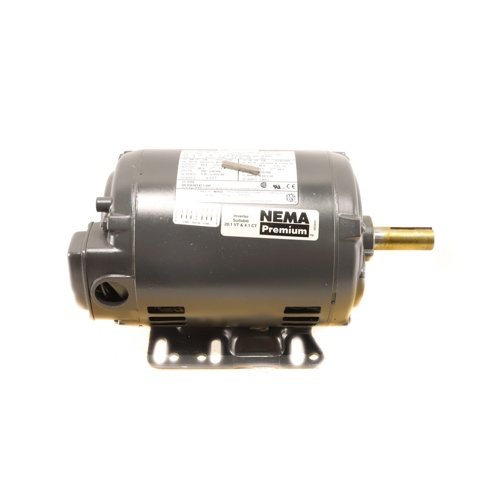

US Motors D2P2D General Purpose Motor Overview
The US Motors D2P2D is a heavy-duty general purpose electric motor engineered for reliable performance across a wide range of commercial and industrial HVAC applications. Built to NEMA standards and designed for versatile installation, this motor delivers consistent power output and long service life in demanding environments.
Electrical Specifications
- Horsepower: 2 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Amperage: 5.9-5.6 / 2.8 Amps
- Speeds: 1 Speed
Mechanical Specifications
- Speed: 1745 / 1420 RPM
- NEMA Frame Size: 145T
- Enclosure Type: Open Dripproof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Key Features & Benefits
- Dual-voltage (208-230/460V) design offers installation flexibility across a variety of electrical systems
- Three-phase operation delivers smooth, efficient power for continuous-duty commercial applications
- Open Dripproof (ODP) enclosure protects internal components from dripping liquids in non-hazardous environments
- Ball bearing construction ensures reduced friction, quieter operation, and extended motor life
- Rigid mount base provides secure, vibration-resistant installation
- Reversible rotation allows flexible configuration to match application requirements
- 145T NEMA frame ensures dimensional compatibility with standard motor mounting footprints
- Dual RPM rating (1745/1420) supports multi-frequency operation (60 Hz / 50 Hz)
Typical Applications
- Commercial HVAC fans and blowers
- Air handling units (AHUs)
- Pumps and compressors
- Industrial conveyor and drive systems
- General-purpose machinery requiring three-phase power
