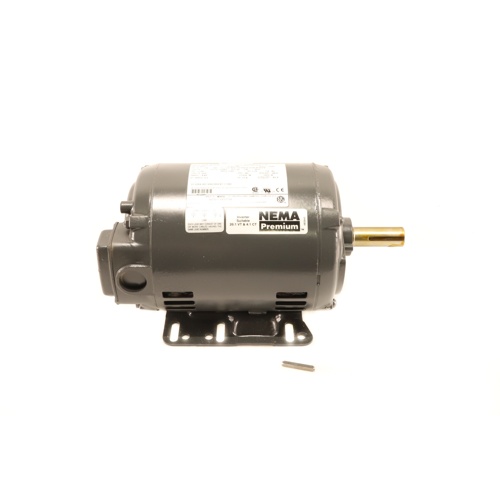

Description
The US Motors D32P2H is a reliable general purpose three-phase motor engineered for demanding HVAC and industrial applications. Built to NEMA standards with a 145T frame, this motor delivers consistent performance across a wide range of equipment including fans, blowers, pumps, compressors, and conveyors.
Key Specifications
- Horsepower: 1-1/2 HP
- Voltage: 200V AC
- Phase: Three Phase
- Speed: 1750 RPM
- Number of Speeds: 1
- Full Load Amps: 4.9 Amps
- NEMA Frame Size: 145T
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting Style: Rigid Mount
- Rotation: Reversible
Design & Construction
The Open Drip Proof (ODP) enclosure is ideal for indoor installations where the motor is protected from falling liquids and solid particles at angles up to 15 degrees from vertical. Ball bearings provide long service life and reduced maintenance, while the rigid mount configuration ensures secure, vibration-resistant installation. The reversible rotation feature adds flexibility for a variety of drive configurations.
NEMA 145T Frame
The standardized 145T NEMA frame allows for easy drop-in replacement in existing motor mounts, minimizing downtime during service or upgrades. This frame size is widely used across commercial and light industrial HVAC equipment.
Applications
- HVAC air handling units and blowers
- Fans and ventilation systems
- Pumps and compressors
- Conveyors and material handling equipment
- General industrial machinery
Why Choose US Motors?
US Motors (a Nidec brand) is a trusted name in motor technology, known for quality construction, energy-efficient designs, and broad application compatibility. The D32P2H is built to deliver dependable, long-lasting performance in the field.
