Description

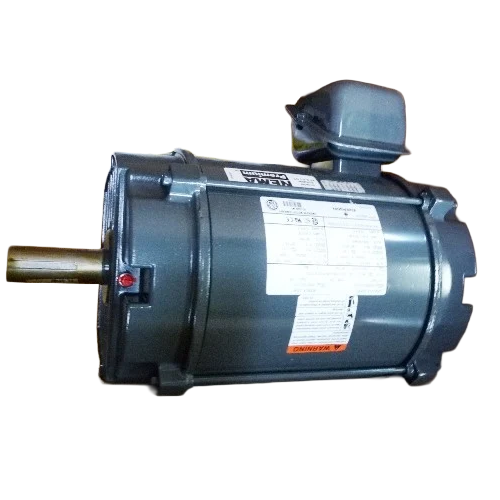

The US Motors D3P2D is a heavy-duty general purpose three-phase motor engineered for reliable performance across a broad range of commercial and industrial HVAC and mechanical applications. Built to NEMA standards and featuring a versatile dual-voltage design, this motor delivers consistent power output and long service life in demanding environments.
Key Features
- General purpose design suitable for a wide variety of HVAC and industrial drive applications
- Open Drip-Proof (ODP) enclosure protects against dripping liquids and falling debris in standard indoor environments
- Ball bearing construction ensures smooth, low-friction operation and extended bearing life
- Rigid mount base for secure, vibration-resistant installation
- Reversible rotation provides installation flexibility
- Single-speed operation for straightforward control and integration
Electrical Specifications
- Horsepower: 3 HP
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 8.3-7.6 A (208-230V) / 3.8 A (460V)
- Speeds: 1 Speed
- RPM: 1770 / 1460
Mechanical Specifications
- NEMA Frame Size: 182T
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Rigid Mount
- Rotation: Reversible
Why Choose the US Motors D3P2D?
US Motors has built a reputation for producing dependable, high-efficiency motors trusted by HVAC professionals and mechanical contractors nationwide. The D3P2D combines a robust 182T NEMA frame with a dual-voltage winding, making it adaptable to both 208-230V and 460V power supplies without requiring a motor change. The ODP enclosure is ideal for indoor mechanical rooms and equipment areas where the motor is protected from direct water exposure. Whether you’re replacing a failed motor on a belt-drive air handler, fan coil, or pump application, the D3P2D delivers the performance and reliability you expect from a US Motors product.
