Description

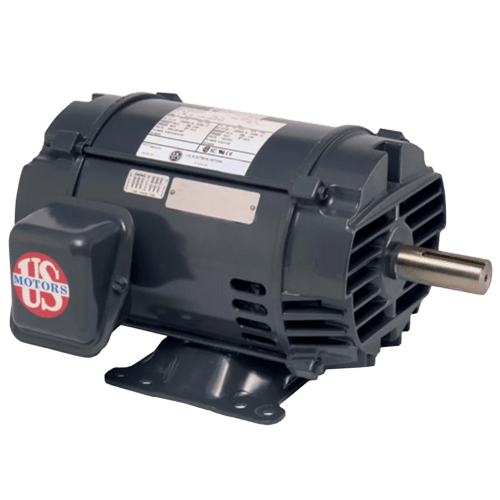

The US Motors D40P2D is a heavy-duty general purpose three-phase induction motor engineered for demanding commercial and industrial HVAC and mechanical system applications. Built around a robust 324T NEMA frame, this motor delivers reliable 40 horsepower output across a wide range of equipment including fans, blowers, pumps, compressors, and conveyors.
Electrical Specifications
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Full Load Amps: 102-91/46 Amps
- Speed: 1780/1475 RPM
- Number of Speeds: 1
Mechanical Specifications
- Horsepower: 40 HP
- NEMA Frame Size: 324T
- Enclosure Type: Open Dripproof (ODP)
- Bearing Type: Ball Bearing
- Mounting Style: Rigid Mount
- Rotation: Reversible
Key Features & Benefits
- Open Dripproof (ODP) enclosure protects internal components from dripping liquids and falling debris in standard indoor environments
- Ball bearings provide smooth, low-friction operation and extended service life under continuous-duty loads
- Reversible rotation offers flexible installation and wiring configurations
- 324T NEMA frame ensures dimensional interchangeability with other NEMA-standard motors for easy drop-in replacement
- Wide voltage range (208-230/460 Vac) accommodates varied facility power supplies without additional transformers
- Three-phase design delivers consistent torque and high efficiency for heavy-duty continuous operation
Typical Applications
- Commercial and industrial HVAC air handling units
- Centrifugal and axial fans and blowers
- Pumps and compressors
- Conveyor and material handling systems
- General industrial machinery
The US Motors D40P2D is a dependable, industry-standard solution for facilities requiring a high-output, three-phase general purpose motor with the flexibility of reversible rotation and a proven NEMA 324T frame footprint.
