Description

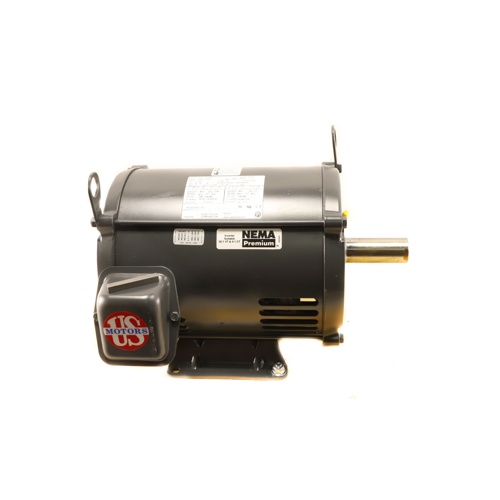

The US Motors D7P2D is a heavy-duty general purpose three-phase induction motor engineered for demanding commercial and industrial HVAC and mechanical applications. Delivering 7-1/2 horsepower with a robust 213T NEMA frame, this motor offers the power, flexibility, and durability needed for fans, blowers, pumps, compressors, and other driven equipment.
Electrical Specifications
- Voltage: 208-230/460V AC
- Phase: Three Phase
- Full Load Amps: 20.2-18.5 A (208-230V) / 9.3 A (460V)
- Speeds: 1 Speed
- Synchronous Speed: 1,800 RPM
- Full Load Speed: 1,765 RPM (60 Hz) / 1,450 RPM (50 Hz)
Mechanical Specifications
- Horsepower: 7-1/2 HP
- NEMA Frame Size: 213T
- Enclosure Type: Open Drip Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Rigid Mount
- Rotation: Reversible
Key Features & Benefits
- Open Drip Proof (ODP) enclosure protects against dripping liquids in indoor or sheltered installations
- Ball bearings provide smooth, low-friction operation and extended service life
- Reversible rotation offers installation flexibility for a wide range of driven equipment
- 213T NEMA frame ensures easy drop-in replacement compatibility with standard motor mounts
- Dual-voltage winding (208-230/460V) allows use across a variety of electrical service configurations
- Rigid mount base for secure, vibration-minimized installation
- Three-phase design delivers efficient, balanced power for continuous-duty commercial and industrial use
Typical Applications
- Commercial HVAC air handlers and blower assemblies
- Centrifugal and axial fans
- Pumps and compressors
- Industrial machinery and conveyor drives
- General-purpose mechanical power transmission
The US Motors D7P2D is backed by US Motors’ reputation for quality and reliability, making it a trusted choice for HVAC contractors, mechanical engineers, and facility maintenance professionals seeking a dependable replacement or new-installation motor.
