Description

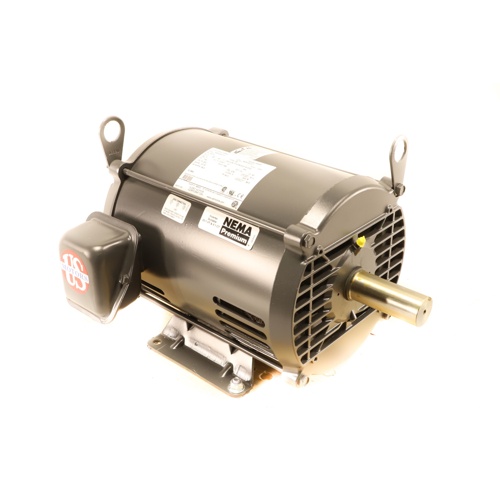

The US Motors D7P2H is a heavy-duty general purpose motor engineered for demanding commercial and industrial HVAC applications. Delivering 7½ horsepower at 200 volts AC on a three-phase supply, this motor provides dependable, efficient power for fans, blowers, pumps, compressors, and a wide range of driven equipment.
Key Specifications
- Horsepower: 7.5 HP (7½ HP)
- Voltage: 200 VAC
- Phase: Three Phase
- Full Load Speed: 1765 RPM
- Full Load Amps: 21.4 A
- Number of Speeds: 1
- NEMA Frame Size: 213T
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Design & Construction
The 213T NEMA frame provides a standardized footprint for straightforward drop-in replacement or new installations. The open drip-proof (ODP) enclosure allows for free air circulation to keep the motor cool while protecting internal components from dripping liquids in non-hazardous indoor environments. Precision ball bearings deliver smooth, low-friction operation and extended service life, reducing maintenance intervals and downtime.
Flexible Installation
- Horizontal footed mount for secure, vibration-resistant installation
- Reversible rotation allows field configuration to match application requirements
- NEMA 213T frame ensures compatibility with standard motor bases and couplings
Ideal Applications
- Commercial HVAC fans and blowers
- Pumps and compressors
- Air handling units
- Industrial and mechanical equipment drives
Trust US Motors — a brand with a long-standing reputation for quality and reliability — to keep your systems running at peak performance. The D7P2H is built to meet the rigorous demands of HVAC and light industrial environments.
