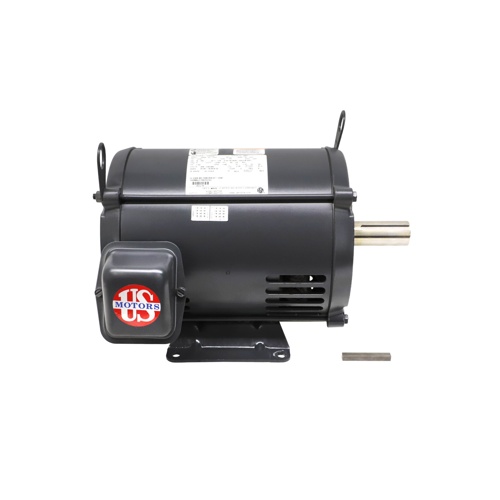

US Motors D7PA2A General Purpose Motor Overview
The US Motors D7PA2A is a heavy-duty general purpose motor engineered for demanding HVAC and industrial applications. Delivering 7½ horsepower at 1760 RPM, this three-phase motor is built to handle continuous-duty loads with dependable efficiency and long service life. Its wide voltage compatibility — 208-230/460V AC — makes it a versatile drop-in solution across a broad range of commercial and industrial installations.
Key Specifications
- Horsepower: 7½ HP
- Voltage: 208-230/460V AC
- Phase: Three Phase
- Speed: 1760 RPM (1 Speed)
- Full Load Amps: 9.2 A
- NEMA Frame Size: 213T
- Enclosure Type: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Design & Construction
The 213T NEMA frame ensures dimensional standardization for straightforward replacement and installation. The Open Drip-Proof (ODP) enclosure protects internal components from dripping liquids and falling debris in non-hazardous indoor environments, while promoting effective ventilation to keep operating temperatures in check. Precision ball bearings deliver smooth, low-friction operation and extended bearing life under continuous load.
Flexible Installation
The horizontal footed mount provides a stable, secure base for mounting on equipment skids, fan arrays, pumps, compressors, and other driven loads. Reversible rotation allows the motor to be configured for clockwise or counterclockwise shaft rotation, offering maximum installation flexibility without requiring additional hardware.
Ideal Applications
- Commercial HVAC fans and blowers
- Pumps and compressors
- Industrial conveyor and drive systems
- Air handling units (AHUs)
- General-purpose machinery requiring three-phase power
Why Choose US Motors?
US Motors (a Nidec brand) is a trusted name in the HVAC and industrial motor industry, known for producing reliable, energy-efficient motors that meet or exceed NEMA standards. The D7PA2A is designed for long-term performance in commercial environments where uptime and efficiency are critical.
