Description

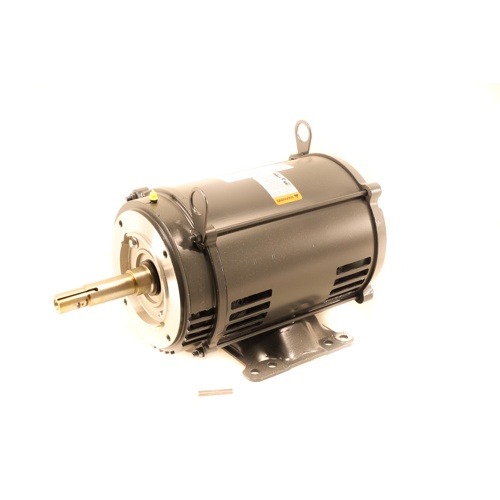

US Motors DJ7P1DM – 7.5HP Close-Coupled Pump Motor
The US Motors DJ7P1DM is a heavy-duty close-coupled pump motor engineered for reliable, high-performance operation in commercial and industrial HVAC hydronic systems. With a robust 184JM frame and 3495 RPM operating speed, this motor delivers the torque and efficiency needed for demanding pump applications.
Key Specifications
- Horsepower: 7.5 HP
- Voltage: 208-230/460V
- Frame: 184JM (Close-Coupled Pump Frame)
- Speed: 3495 RPM
- Brand: US Motors
- SKU: DJ7P1DM
Features & Benefits
- 184JM close-coupled pump frame for direct mounting to pump volutes — eliminates the need for a separate coupling
- Dual-voltage design (208-230/460V) provides installation flexibility across a wide range of commercial electrical systems
- High synchronous speed (3495 RPM) delivers strong hydraulic performance for HVAC hydronic and water circulation applications
- Built to US Motors’ exacting quality standards for long service life and dependable operation
- Designed as a direct replacement motor for a wide range of commercial pump assemblies
Application
The DJ7P1DM is ideally suited for use with close-coupled centrifugal pumps in hydronic heating and cooling systems, chilled water loops, condenser water circuits, and other commercial HVAC pump applications where reliable, continuous-duty motor performance is required.
