Description

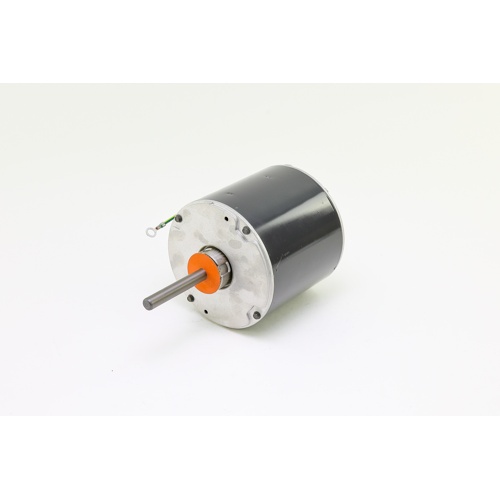

The US Motors LX7922 is a heavy-duty condenser fan motor engineered for dependable performance in demanding outdoor HVAC applications. Designed to meet the rigorous requirements of commercial and residential air conditioning systems, this motor delivers consistent airflow across condenser coils to maximize system efficiency and equipment longevity.
Electrical Specifications
- Voltage: 460 VAC
- Phase: Single Phase
- Amperage: 1.3 Amps
- Speed: 1,075 RPM
- Number of Speeds: 1
- Horsepower: 1/3 HP
Mechanical Specifications
- NEMA Frame Size: 48Y
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Bearing Type: Ball Bearing
- Mounting Style: Band Mount
- Rotation: Counterclockwise (CCW), Lead End
Key Features & Benefits
- Totally Enclosed Air Over (TEAO) enclosure protects internal components from dust, moisture, and outdoor contaminants
- Ball bearing construction ensures smooth, quiet operation and extended service life
- Band mount design simplifies installation and replacement in standard condenser fan applications
- CCW lead-end rotation is factory-set for direct compatibility with common condenser fan blade configurations
- 48Y NEMA frame provides broad OEM and aftermarket cross-compatibility
- Single-speed, single-phase design offers straightforward integration with existing electrical systems
- Built by US Motors, a trusted name in HVAC motor manufacturing with decades of field-proven reliability
Typical Applications
- Residential and light commercial air conditioning condensing units
- Rooftop package units
- Heat pump outdoor sections
- OEM motor replacement and aftermarket service applications
