Description

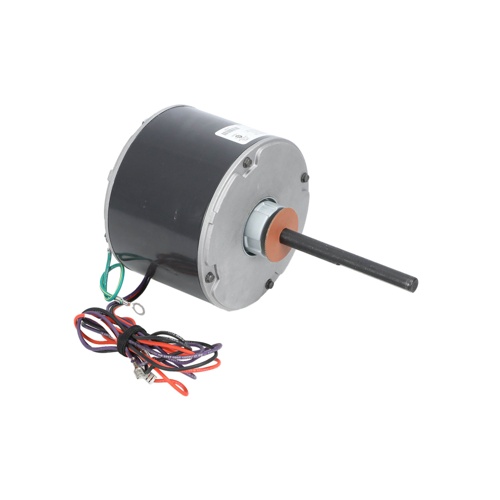

The US Motors LX7927 is a purpose-built condenser fan motor engineered for reliable, long-life performance in air conditioning and refrigeration condensing unit applications. Designed to operate in demanding outdoor environments, this motor features a Totally Enclosed Air Over (TEAO) enclosure that protects internal components from dust, debris, and moisture — making it an ideal direct replacement for OEM and aftermarket condenser fan assemblies.
Electrical Specifications
- Voltage: 208–230V AC
- Phase: Single Phase
- Full Load Amps: 1.1 Amps
- Speeds: 1 Speed
Mechanical Specifications
- Horsepower: 1/6 HP
- Speed: 825 RPM
- NEMA Frame Size: 48Y
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Bearing Type: SAB (Sleeve and Ball)
- Mounting Style: Band Mount
- Rotation: Counterclockwise (CCW), Lead End
Key Features & Benefits
- Totally Enclosed Air Over enclosure for superior protection in outdoor and harsh environments
- SAB bearing design delivers extended service life and reduced maintenance requirements
- Band mount configuration allows for flexible, secure installation on a wide range of condensing units
- CCW lead-end rotation matches standard condenser fan blade configurations
- 48Y NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket applications
- Single-phase, 208–230V operation suits residential and light commercial HVAC systems
- Low 825 RPM speed promotes quiet operation and reduced wear on fan blades
Application
The LX7927 is well-suited for use in residential and light commercial air conditioning condensing units, heat pumps, and refrigeration equipment requiring a reliable, low-speed condenser fan motor. Its band mount design and standard 48Y NEMA frame make it a versatile replacement motor for a wide variety of equipment brands and models.
