Description

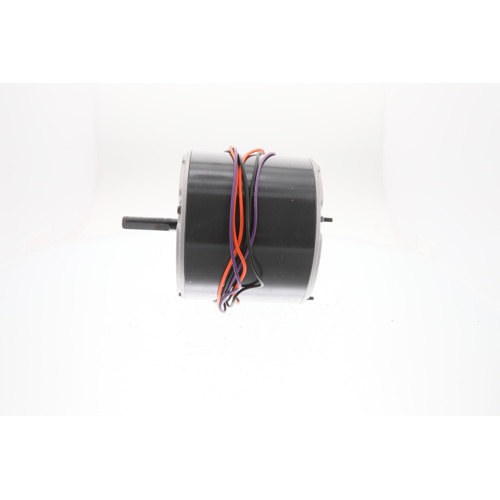

US Motors LX7931 Condenser Fan Motor Overview
The US Motors LX7931 is a purpose-built condenser fan motor engineered for reliable, long-lasting performance in air conditioning and refrigeration condenser applications. Featuring a totally enclosed air over (TEAO) enclosure, this motor is designed to withstand the demanding outdoor conditions typical of condenser unit service, protecting internal components from dust, debris, and moisture ingress.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 208–230V AC
- Phase: Single Phase
- Speed: 825 RPM
- Number of Speeds: 1
- Full Load Amps: 1.7 Amps
- NEMA Frame Size: 48Y
- Enclosure Type: Totally Enclosed Air Over (TEAO)
- Bearing Type: SAB (Sleeve and Ball)
- Mounting: Stud Mount
- Rotation: Counterclockwise (CCW), Lead End
Design & Construction
The 48Y NEMA frame provides a standardized footprint for straightforward OEM replacement and retrofit installations. The stud mount configuration simplifies secure attachment to condenser fan decks and brackets. SAB bearings deliver a balanced combination of smooth, quiet operation and extended service life, making this motor well-suited for continuous-duty condenser fan service.
Performance & Reliability
Running at a low 825 RPM, the LX7931 is optimized for efficient airflow delivery across condenser coils while minimizing noise and vibration. The counterclockwise (CCW) rotation at the lead end is a critical specification to confirm compatibility with your existing fan blade pitch and condenser assembly. At 1.7 full load amps, this motor draws minimal current, contributing to overall system energy efficiency.
Application
- Residential and light commercial air conditioning condenser units
- Refrigeration condenser fan applications
- OEM replacement for compatible 48Y frame condenser motors
- Stud-mount condenser fan decks requiring CCW lead-end rotation
Why Choose the US Motors LX7931?
US Motors has a long-standing reputation in the HVAC industry for producing durable, high-quality motors built to meet the rigorous demands of heating, cooling, and refrigeration systems. The LX7931 upholds that tradition with its robust TEAO enclosure, reliable SAB bearing package, and precise electrical specifications — ensuring a dependable drop-in replacement that keeps condenser systems running at peak performance.
