Description

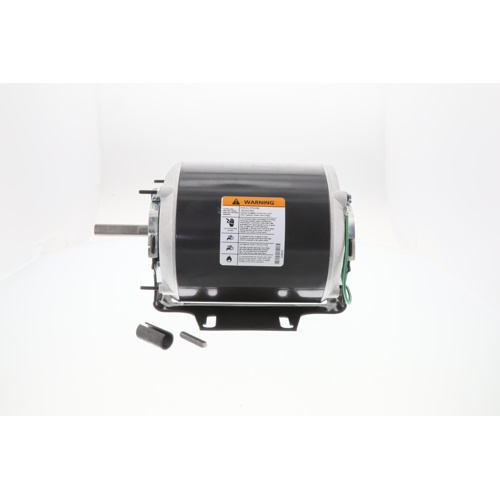

The US Motors PD6002 is a reliable, single-speed belt drive motor engineered for demanding HVAC air-handling applications. Built around a 48Z NEMA frame and featuring an Open Drip-Proof (ODP) enclosure, this motor delivers consistent performance in a wide range of fan and blower installations.
Motor Overview
Designed for split-phase operation, the PD6002 accepts both 115V and 208-230V single-phase power supplies, making it a versatile drop-in replacement for residential and light commercial belt drive systems. Its resilient mount base simplifies installation and helps reduce vibration transmission to the equipment frame.
Key Specifications
- Horsepower: 1/4 HP
- Voltage: 115/208-230V AC
- Motor Type: Split Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 5.2A (115V) / 2.5–2.6A (208-230V)
- NEMA Frame Size: 48Z
- Enclosure: Open Drip-Proof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Mount
- Rotation: Reversible
Features & Benefits
- Dual-voltage capability (115V / 208-230V) for flexible installation across multiple system configurations
- Ball bearing construction provides long service life and smooth, low-friction operation
- Reversible rotation allows for easy adaptation to a variety of belt drive fan and blower setups
- Open Drip-Proof enclosure protects internal components from dripping liquids in standard indoor environments
- Resilient mount base minimizes vibration and noise transfer to the equipment structure
- 48Z NEMA frame ensures broad cross-reference compatibility with OEM and aftermarket applications
- Single-speed, split-phase design offers straightforward operation and simplified wiring
Typical Applications
- Residential and light commercial air handlers
- Belt drive blower assemblies
- Fan coil unit replacements
- Furnace and HVAC system upgrades
