Description

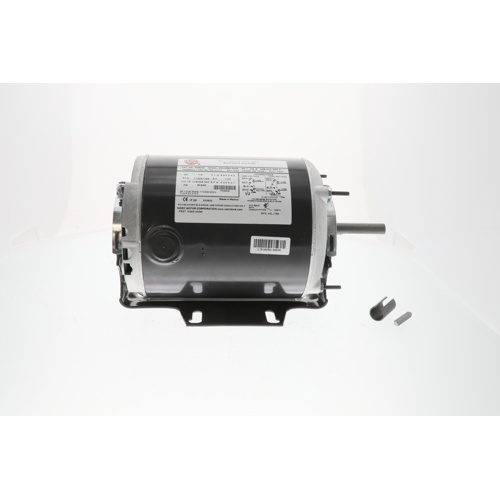

The US Motors PD6006 is a reliable, commercial-grade belt drive motor engineered for demanding HVAC air-handling applications. Built on the industry-standard 48Z NEMA frame, this split phase motor delivers consistent performance across a wide range of blower and fan systems.
Electrical Specifications
- Voltage: 115/208-230V AC
- Motor Type: Split Phase
- Full Load Amps: 8.6A (115V) / 4.2–4.3A (208-230V)
- Speed: 1 Speed
- RPM: 1725 (60 Hz) / 1425 (50 Hz)
Mechanical Specifications
- Horsepower: 1/2 HP
- NEMA Frame Size: 48Z
- Enclosure Type: Open Dripproof (ODP)
- Bearing Type: Ball Bearing
- Mount Type: Resilient Mount
- Rotation: Reversible
Key Features & Benefits
- Reversible rotation for flexible installation configurations
- Ball bearing construction for long service life and reduced maintenance
- Resilient mount design minimizes vibration and noise transmission
- Open Dripproof enclosure protects internal components from dripping liquids in standard indoor environments
- Dual-voltage capability (115/208-230V) simplifies installation across various electrical systems
- 48Z NEMA frame ensures broad cross-reference compatibility with OEM and replacement applications
- Dual-frequency rated (60 Hz / 50 Hz) for versatile domestic and international use
Typical Applications
- Belt drive air handlers and blower assemblies
- HVAC fan coil units
- Commercial ventilation systems
- Replacement motor for 48Z frame OEM installations
The US Motors PD6006 is a dependable choice for HVAC professionals seeking a versatile, dual-voltage belt drive motor with proven split phase technology and a rugged ball bearing design.
