Description

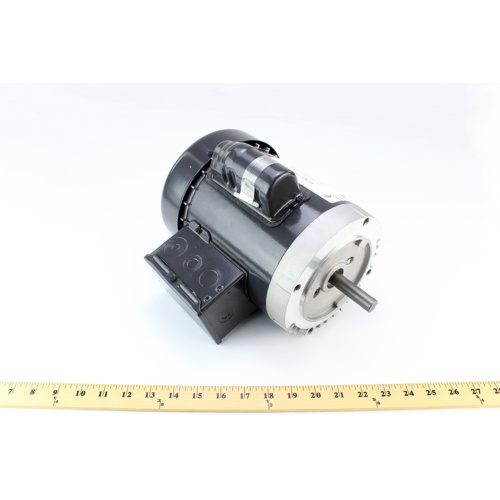

The US Motors T12C2JCR is a dependable general purpose electric motor engineered for demanding HVAC and industrial applications. Built around a rugged 56C NEMA frame, this motor delivers consistent performance in environments where durability and versatility are essential.
Motor Overview
Designed for single-phase operation, the T12C2JCR runs at 1,725 RPM and is rated at 1/2 horsepower — making it well-suited for fans, blowers, pumps, compressors, and a wide range of general-purpose equipment. Its reversible rotation adds flexibility for varied installation configurations.
Electrical Specifications
- Horsepower: 1/2 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Amperage: 9.0A (115V) / 4.3–4.5A (208-230V)
- Speed: 1,725 RPM
- Number of Speeds: 1
Mechanical Specifications
- NEMA Frame Size: 56C
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mount Type: C-Face Mount
- Rotation: Reversible
Key Features & Benefits
- Totally Enclosed Fan Cooled (TEFC) design protects internal components from dust, moisture, and debris — ideal for both indoor and outdoor installations
- Ball bearing construction ensures smooth, low-friction operation and extended service life with minimal maintenance
- C-Face mount provides precise, rigid coupling to pumps, gearboxes, and other driven equipment
- Reversible rotation allows flexible installation to meet varying application requirements
- 56C NEMA frame ensures dimensional standardization for easy drop-in replacement
- Dual-voltage capability (115/208-230V) offers wiring flexibility across a wide range of electrical systems
Typical Applications
- HVAC blowers and fans
- Pumps and compressors
- Conveyors and material handling equipment
- General industrial machinery
