Description

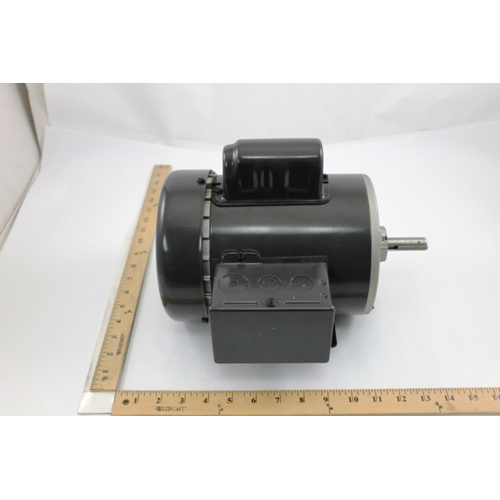

The US Motors T34CA2J is a dependable general purpose electric motor engineered for a wide range of commercial and industrial HVAC applications. Built around a rugged 56 NEMA frame and a Totally Enclosed Fan Cooled (TEFC) design, this motor delivers reliable performance in demanding environments where dust, moisture, and debris are a concern.
Motor Specifications
- Horsepower: 3/4 HP
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Speed: 1725 RPM, 1 Speed
- Amperage: 11.4A (115V) / 5.7A (208-230V)
- NEMA Frame Size: 56
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Mount Type: Rigid Mount
- Rotation: Reversible
Key Features & Benefits
- Totally Enclosed Fan Cooled (TEFC) enclosure protects internal windings from dust, dirt, and moisture — ideal for harsh or outdoor-adjacent environments
- Reversible rotation provides installation flexibility to meet varied application requirements
- Dual-voltage capability (115/208-230V AC) allows compatibility with a broad range of electrical systems
- 56 NEMA frame ensures standardized mounting dimensions for straightforward drop-in replacement
- Rigid mount design provides a secure, vibration-resistant installation
- Single-phase operation makes it suitable for facilities without three-phase power
- 1725 RPM operating speed delivers consistent, efficient torque output for general purpose loads
Typical Applications
- HVAC fan and blower assemblies
- Air handling units
- Pumps and compressors
- Conveyor and material handling equipment
- General commercial and light industrial machinery
The US Motors T34CA2J is backed by the trusted engineering of Nidec Motor Corporation’s US Motors brand, a recognized leader in electric motor technology. Whether you’re replacing a failed motor or specifying equipment for a new installation, the T34CA2J offers the durability, versatility, and performance HVAC professionals demand.
