Description

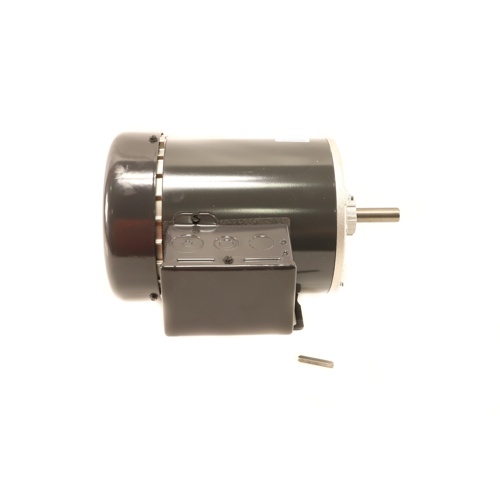

The US Motors T34S2A is a rugged, general-purpose three-phase motor engineered for demanding HVAC and industrial applications. Built around a 56 NEMA frame, this motor delivers dependable performance in environments where durability and efficiency are critical.
Key Features
- Horsepower: 3/4 HP for reliable power output across a wide range of applications
- Voltage: 208-230/460 Vac dual-voltage design for flexible installation in single or multi-voltage electrical systems
- Phase: Three-phase operation for smooth, efficient power delivery
- Speed: 1725 RPM single-speed operation for consistent performance
- Amperage: 3.0-3.0/1.5 Amps to match your electrical system requirements
- NEMA Frame: 56 frame size for standardized mounting compatibility
- Enclosure: Totally Enclosed Fan Cooled (TEFC) for protection against dust, moisture, and contaminants
- Bearing Type: Ball bearings for long service life and reduced maintenance
- Mount: Rigid mount for secure, vibration-resistant installation
- Rotation: Reversible rotation for maximum installation flexibility
Application Suitability
The T34S2A is ideally suited for HVAC fans, blowers, pumps, compressors, and other general-purpose mechanical loads where a compact, three-phase motor is required. The TEFC enclosure makes it appropriate for both indoor and outdoor installations where exposure to dust and moisture is a concern.
Why Choose the US Motors T34S2A?
- Dual-voltage (208-230/460V) design simplifies installation across varying electrical systems
- TEFC enclosure provides superior protection in harsh or dirty environments
- Ball bearings ensure long-lasting, low-maintenance operation
- Reversible rotation adds versatility for a wide range of equipment configurations
- 56 NEMA frame ensures drop-in compatibility with standard motor mounts
- Trusted US Motors quality and engineering for commercial and industrial reliability
