Description

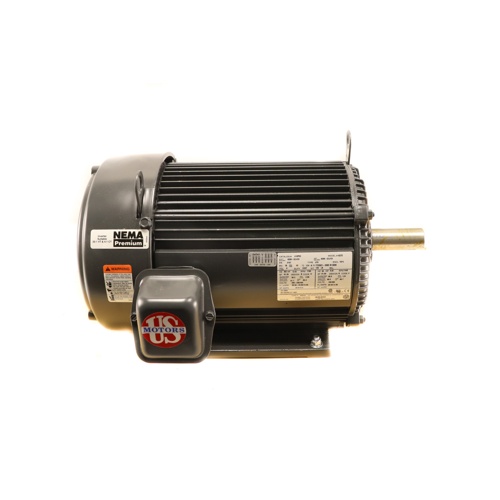

The US Motors U10P2D is a heavy-duty general purpose electric motor engineered for reliable performance across a wide range of commercial and industrial HVAC applications. With a robust 10 horsepower output and a Totally Enclosed Fan Cooled (TEFC) design, this motor delivers consistent power while protecting internal components from dust, moisture, and airborne contaminants — making it ideal for demanding mechanical room and rooftop environments.
Electrical Specifications
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Full Load Amps: 12 Amps
- Speed: 1760 / 1445 RPM
- Number of Speeds: 1
Mechanical Specifications
- Horsepower: 10 HP
- NEMA Frame Size: 215T
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Key Features & Benefits
- Totally Enclosed Fan Cooled (TEFC) enclosure protects against dust, moisture, and debris in harsh environments
- Dual voltage rating (208-230/460V) provides installation flexibility across a wide range of electrical systems
- Reversible rotation allows for versatile application configurations without additional hardware
- Ball bearing construction ensures smooth, low-friction operation and extended service life
- Horizontal footed mount design simplifies installation and alignment on standard equipment bases
- 215T NEMA frame ensures dimensional compatibility with standard motor mounting configurations
- Three-phase power delivery provides superior efficiency and reduced operating costs compared to single-phase alternatives
Typical Applications
- Commercial HVAC air handling units
- Pumps and compressors
- Fans and blowers
- Conveyor systems
- General industrial machinery
The US Motors U10P2D is built to US Motors’ exacting standards for quality and durability, making it a trusted choice for HVAC contractors and mechanical engineers who demand reliable motor performance in critical applications.
