Description

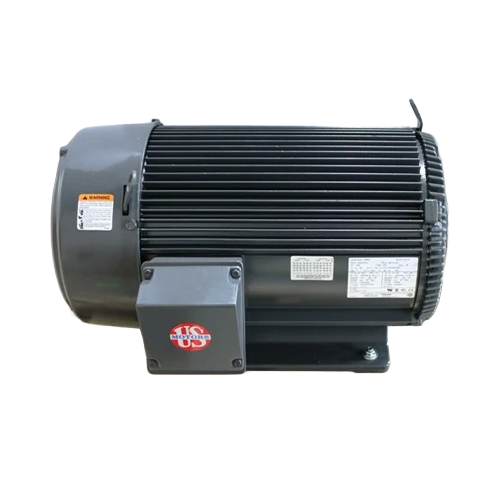

The US Motors U25P2D is a heavy-duty general purpose electric motor engineered for demanding commercial and industrial HVAC and mechanical applications. Built to NEMA standards with a 284TS frame, this motor delivers reliable, consistent performance across a wide range of equipment including fans, blowers, pumps, and compressors.
Key Specifications
- Horsepower: 25 HP
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Speed: 1770/1460 RPM (1 Speed)
- Full Load Amps: 29.3 Amps
- NEMA Frame Size: 284TS
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Design & Construction
The Totally Enclosed Fan Cooled (TEFC) enclosure protects internal windings from dust, moisture, and contaminants, making this motor well-suited for both indoor and outdoor installations. Precision ball bearings ensure smooth, low-friction operation and extended service life even under continuous-duty loads. The 284TS NEMA frame provides dimensional standardization for straightforward drop-in replacement or new installations.
Electrical Flexibility
Dual-voltage capability (208-230/460 Vac) allows this motor to be wired for a variety of three-phase power configurations commonly found in commercial buildings, industrial plants, and mechanical rooms. The reversible rotation feature adds installation versatility, enabling the motor to be configured to suit the driven equipment’s directional requirements.
Applications
- Commercial HVAC fans and blowers
- Pumps and compressors
- Industrial conveyor and process equipment
- Air handling units
- General mechanical power transmission
Why Choose the US Motors U25P2D?
US Motors (a Regal brand) is a trusted name in the HVAC and industrial motor industry, known for producing motors that meet or exceed NEMA efficiency standards. The U25P2D combines robust construction, flexible voltage compatibility, and a standardized frame size to deliver a motor that is easy to specify, install, and maintain.
