Description

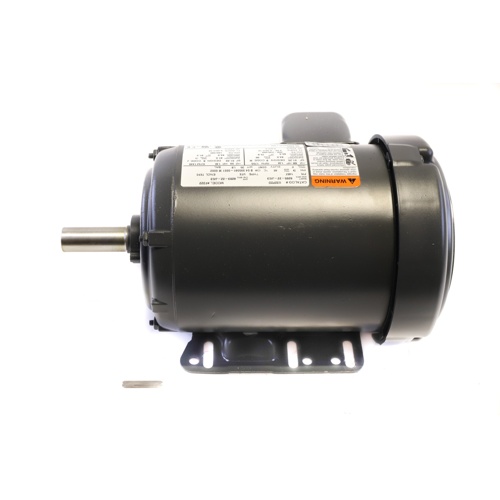

The US Motors U32P2D is a rugged, general purpose three-phase induction motor engineered for demanding commercial and industrial HVAC applications. Built around a 145T NEMA frame, this motor delivers dependable performance across a wide range of mechanical loads — from fans and blowers to pumps and compressor auxiliaries.
Key Features
- 1½ HP output power for versatile general purpose use
- Dual voltage rating: 208-230/460 Vac — compatible with a wide range of three-phase electrical systems
- Three-phase, 1-speed operation at 1755/1440 RPM (60/50 Hz)
- Full-load current draw: 4.5-4.3 Amps (208-230V) / 2.1 Amps (460V)
- 145T NEMA frame size for easy drop-in replacement and standard mounting compatibility
- Totally Enclosed Fan Cooled (TEFC) enclosure protects against dust, moisture, and contaminants
- Ball bearing construction for long service life and reduced maintenance
- Rigid mount design for secure, vibration-resistant installation
- Reversible rotation — adaptable to a variety of drive configurations
Electrical Specifications
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Speed: 1755/1440 RPM
- Speeds: 1
- Full Load Amps: 4.5-4.3 / 2.1 A
Mechanical Specifications
- Horsepower: 1½ HP
- NEMA Frame: 145T
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mount Type: Rigid
- Rotation: Reversible
Why Choose the US Motors U32P2D?
US Motors has a long-standing reputation for producing reliable, high-efficiency motors built to meet the rigorous demands of HVAC and industrial environments. The U32P2D’s TEFC enclosure makes it well-suited for both indoor and outdoor installations where exposure to dust or moisture is a concern. Its dual-voltage capability simplifies inventory management for contractors and distributors serving multiple facility types, while the standard 145T frame ensures broad interchangeability with existing equipment.
