Description

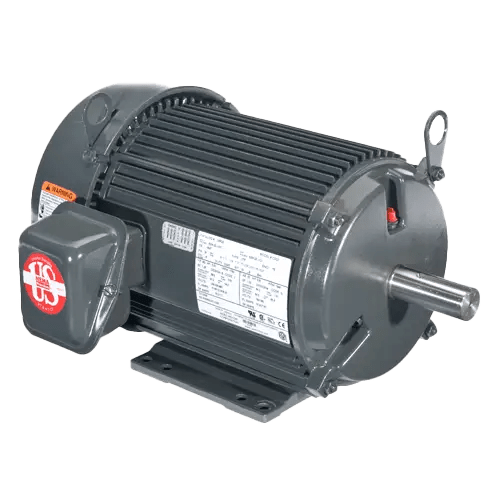

The US Motors U3P3D is a heavy-duty general purpose motor engineered for demanding commercial and industrial HVAC applications. Built to NEMA standards and designed for long-term reliability, this three-phase motor delivers consistent performance across a wide range of mechanical drive applications including fans, blowers, pumps, compressors, and conveyors.
Key Features
- Totally Enclosed Fan Cooled (TEFC) construction protects internal components from dust, moisture, and contaminants
- Ball bearing design ensures smooth, low-friction operation and extended service life
- Reversible rotation for flexible installation and application versatility
- Horizontal footed mount for secure, stable equipment integration
- Single-speed operation for straightforward, reliable performance
- Suitable for use on 208V, 230V, or 460V three-phase power systems
Electrical Specifications
- Horsepower: 3 HP
- Voltage: 208-230/460 Vac
- Phase: Three Phase
- Speed: 1175 RPM
- Speeds: 1 Speed
- Full Load Amps: 4.3 Amps
Mechanical Specifications
- NEMA Frame Size: 213T
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mount Type: Horizontal Footed
- Rotation: Reversible
Why Choose the US Motors U3P3D?
US Motors is a trusted name in motor manufacturing, known for producing durable, efficient, and application-ready motors for the HVAC and industrial trades. The U3P3D’s TEFC enclosure and ball bearing construction make it an ideal choice for environments where motor longevity and minimal maintenance are critical priorities. The dual-voltage capability (208-230/460V) provides installation flexibility across a variety of commercial electrical systems, reducing the need for multiple SKUs on the job site.
