Description

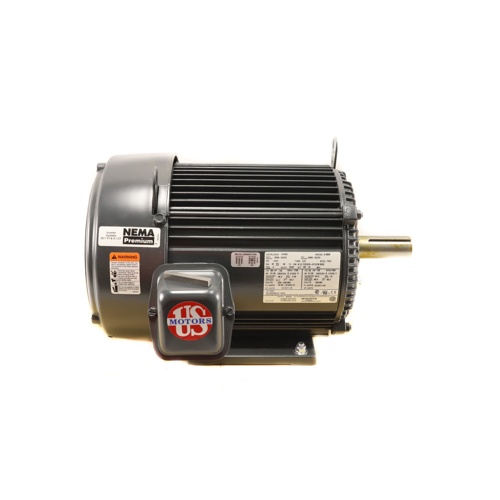

The US Motors U7P2D is a heavy-duty general purpose electric motor engineered for demanding industrial and commercial HVAC applications. Built to NEMA standards and housed in a Totally Enclosed Fan Cooled (TEFC) enclosure, this motor delivers dependable performance in environments where moisture, dust, and debris are a concern.
Key Specifications
- Horsepower: 7-1/2 HP (7.5 HP)
- Voltage: 208-230/460 VAC
- Phase: Three Phase
- Speed: 1765/1455 RPM (1 Speed)
- Full Load Amps: 9.1 Amps
- NEMA Frame Size: 213TC
- Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
- Bearing Type: Ball Bearing
- Mounting: Horizontal Footed Mount
- Rotation: Reversible
Design & Construction
The 213TC NEMA frame provides a standardized footprint for straightforward drop-in replacement or new installations. Dual-voltage capability (208-230/460V) offers installation flexibility across a wide range of three-phase power systems. The reversible rotation feature allows the motor to be configured for clockwise or counterclockwise operation to suit virtually any driven load.
Enclosure & Bearing Features
- TEFC enclosure protects internal windings from contaminants without requiring ventilation openings
- Precision ball bearings provide smooth, low-friction operation and extended service life
- Horizontal footed mount ensures secure, stable installation on standard motor bases and equipment frames
Typical Applications
- Commercial HVAC fans and blowers
- Pumps and compressors
- Industrial conveyor and process equipment
- Air handling units
- General-purpose machinery drives
The US Motors U7P2D is backed by US Motors’ reputation for quality and reliability, making it an ideal choice for HVAC contractors, mechanical engineers, and facility maintenance professionals seeking a dependable, versatile three-phase motor solution.
