Description

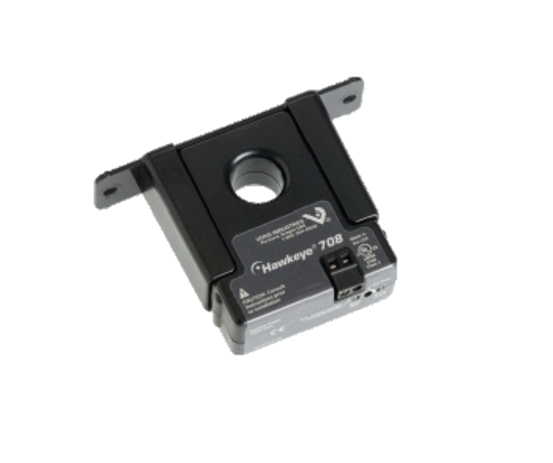

Detect motor and fan operation reliably using the Veris H708, a solid-core adjustable trip-point current switch designed for easy retrofit and new-construction applications in HVAC and automation systems.
Specifications:
- Application: Building Automation Systems
- Current Measurement Range: 1 – 135 A
- Current Sensor type: Current Switch, AC
- Electrical Wiring Size: 24 – 14 AWG (0.2 – 2.1 mm²)
- Measurement Type: AC Current
- Monitored Frequency Range: 50 – 60 Hz
- Monitored Wire Size: 0.7″ (18 mm)
- Mounting: Solid Core
- Operating Humidity: 10 – 90% RH, non-condensing
- Operating Temperature: 5 – 140 °F (-15 – 60 °C)
- Output Specifications: N.O. 1 A @ 30 VAC/DC
- Outputs: Switch output
- Product Certification: UL
- Range: HX08 Series
- Relay Coil Voltage: None
- Relay Contact Ratings: None
- Relay Poles/Throw: None
- Setpoint: Adjustable
