Description

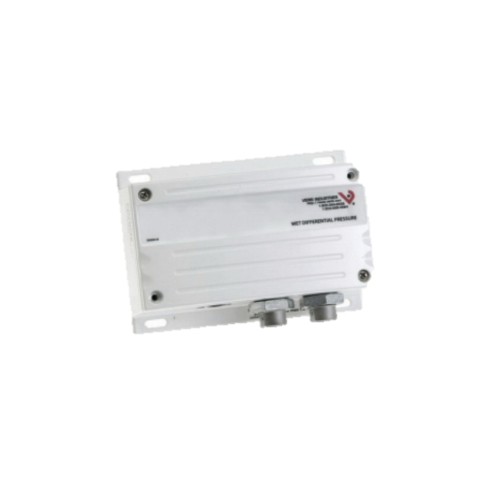

The Veris PWXX05S is a high-precision wet-media differential pressure transducer, engineered to monitor pressure across pumps, filters, heat exchangers, and compressors in water-based systems. Built with rugged components and smart design, it sets a new standard for reliability, ease of installation, and long-term stability.
Features:
- The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
- Rugged, die-cast enclosure provides NEMA 4 sealing
- Switch-selectable pressure ranges, fewer models to order and stock
- Pushbutton and remote zero adjustment, maintain accuracy and reduce callbacks with automatic zero calibration
- Jumper-controlled electronic surge dampening for high stability
- Electronic, 5 s averaging surge damping
- Overrides output to full scale (20 mA, 5 V, 10 V) test mode
- Pushbutton auto-zero and digital input (2-position terminal block) zero adjust
- Dual-color LED: green = normal, green blinking = low greater than high, red = over range, red blinking = overpressure status indication
- Media compatible with 17 to 4 PH stainless steel
- Maximum 2x full scale range proof pressure
- Maximum 5x full scale range burst pressure
