Description

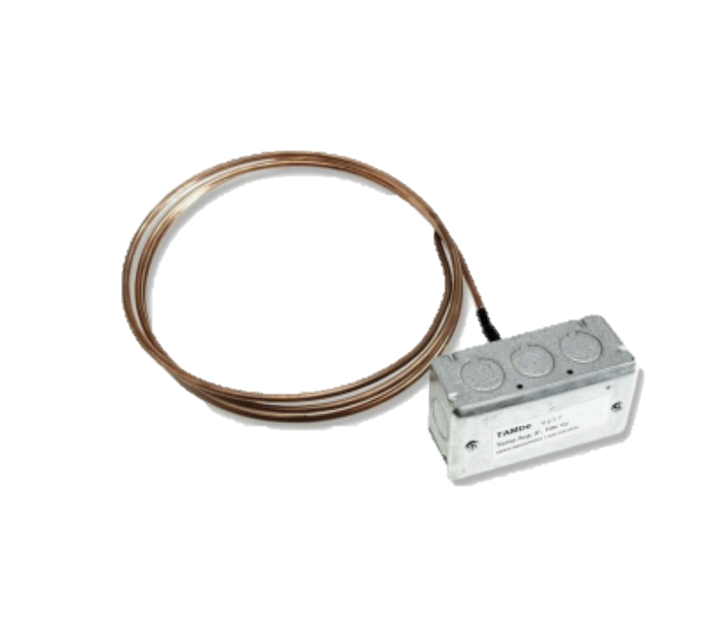

The Veris TAJI0 is a premium averaging temperature sensor designed for ductwork and large air-handling systems. Built with a 24-foot flexible copper probe and precision RTD or thermistor sensing, it provides accurate average temperature readings over extended lengths—ideal for enhanced HVAC efficiency and precise environmental monitoring.
Specifications:
- Application Zone: Plant Room
- Application: Chiller | Heat Exchangers
- Dimension Depth: 1.8″ (44 mm)
- Dimension Height: 4.2″ (102 mm)
- Dimension Probe Diameter: 3/16″ (4.8 mm)
- Dimension Probe Length: 24′ (7.3 m)
- Dimension Width: 2.3″ (58 mm)
- Electrical Wiring Size: 22 AWG (0.32 mm²)
- Enclosure Material: Galvanized Steel
- Measurement Type: Temperature
- Mounting: Duct with Mounting Box
- Operating Temperature: -13 – 221 °F (-25 – 105 °C)
- Outputs: Resistive output
- Range: TA
- Temperature Calibration Certificate: None
- Temperature Measurement Accuracy: ±1.2 °F (±0.7 °C) @ 158 °F (70 °C)
- Temperature Sensor Type: 1k Ohm BALCO (Nickel Iron) RTD
