Description

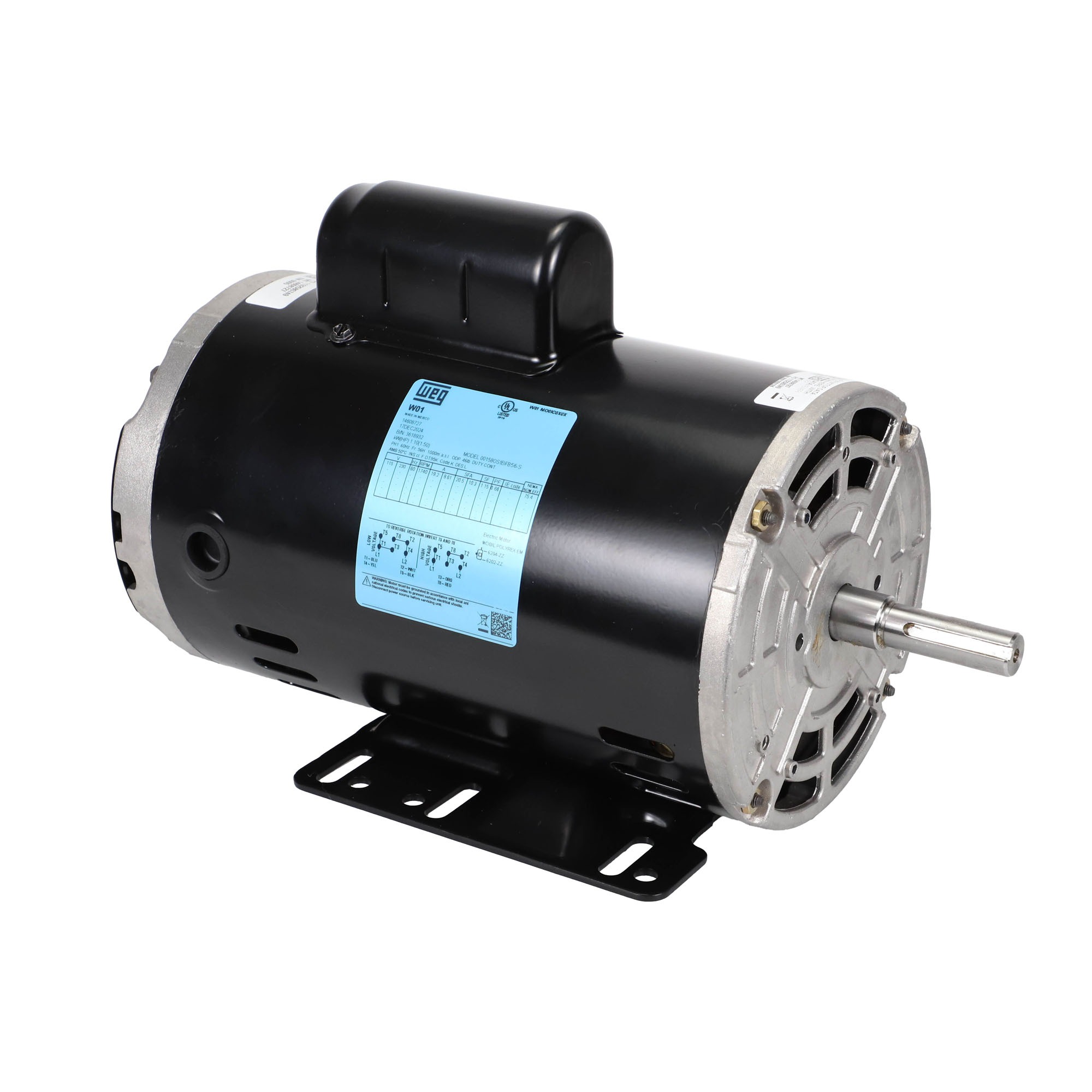

The WEG Electric Corp 00158OS1BFB56-S is a 1.5 horsepower, open drip-proof (ODP) general purpose motor engineered for dependable performance across a wide range of HVAC and light industrial applications. Built on the industry-standard 56H frame, this motor delivers consistent torque and long service life in demanding environments.
Key Features
- 1.5 HP output for robust, reliable power delivery
- 4-pole design for approximately 1,800 RPM synchronous speed
- NEMA 56H frame — industry-standard footprint for easy replacement and installation
- Open Drip-Proof (ODP) enclosure protects against vertically falling moisture and debris
- Single-phase operation for compatibility with standard power supplies
- Foot-mount configuration for secure, stable installation
- WEG’s proven motor engineering for extended service life and energy efficiency
Typical Applications
- HVAC blower and fan assemblies
- Air handling units
- Pumps and compressors
- Light industrial machinery
- Commercial ventilation equipment
Product Specifications
- SKU: 00158OS1BFB56-S
- Brand: WEG Electric Corp
- Horsepower: 1.5 HP
- Poles: 4 (approx. 1,800 RPM synchronous)
- Frame: NEMA 56H
- Enclosure: Open Drip-Proof (ODP)
- Phase: Single-Phase
- Mount: Foot Mount
WEG Electric Corp is a globally recognized leader in electric motor manufacturing, known for producing high-efficiency, durable motors that meet the rigorous demands of HVAC and industrial applications. The 00158OS1BFB56-S is a direct-replacement-ready motor designed to minimize downtime and simplify maintenance.
