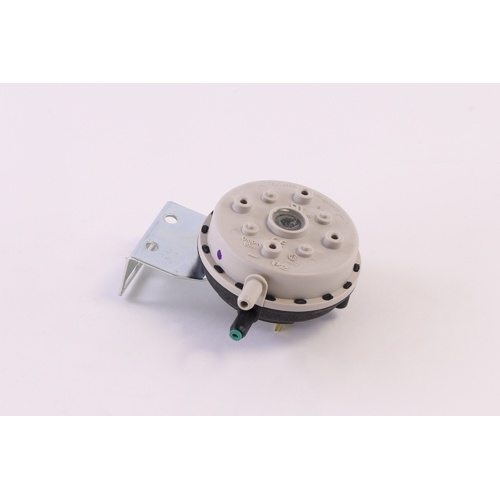

Weil McLain 511-624-521 Pressure Switch Overview
The Weil McLain 511-624-521 is a precision-engineered pressure switch designed as a direct OEM replacement for Weil McLain boiler systems. Featuring a 1.25″ water column (“wc) set point, this switch provides accurate, dependable pressure sensing to protect your boiler from unsafe operating conditions. Its single-pole, single-throw (SPST) switching action delivers a clean, reliable signal to the control circuit, helping ensure safe and efficient boiler operation.
Key Features
- Set Point: 1.25″ water column (“wc) for precise pressure monitoring
- Switch Type: SPST (Single-Pole, Single-Throw) for straightforward circuit control
- Dual 1/4″ barb connections for easy hose attachment and secure, leak-free installation
- OEM Weil McLain replacement part — engineered for direct fit and reliable performance
- Monitors combustion air or venting pressure to safeguard boiler operation
- Compact design for installation in tight boiler cabinet spaces
Application
This pressure switch is commonly used in Weil McLain gas-fired boilers as part of the combustion safety circuit. It monitors draft or air pressure conditions and interrupts the ignition sequence if proper pressure levels are not established, preventing unsafe operation and protecting both the equipment and building occupants.
Installation Notes
- Dual 1/4″ barb ports accommodate standard rubber or silicone pressure tubing
- SPST wiring configuration integrates directly into existing boiler control wiring harness
- Always verify compatibility with your specific Weil McLain boiler model before installation
- Consult the boiler service manual and follow all applicable codes and safety guidelines during installation
