Description

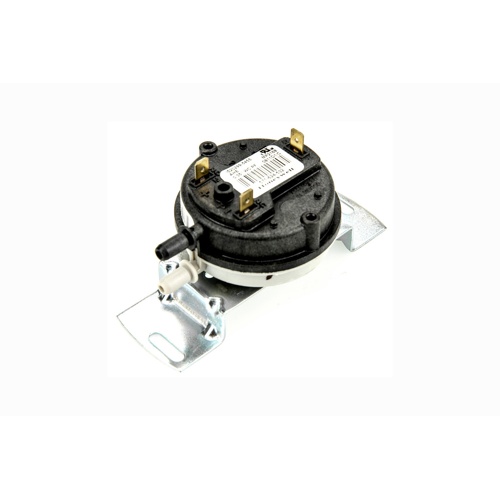

The Weil McLain 511-624-532 is a factory-engineered differential pressure switch designed as a direct OEM replacement for compatible Weil McLain boiler systems. Built with a Single-Pole Single-Throw (SPST) switch action, this pressure switch monitors and confirms proper draft or airflow conditions before allowing burner ignition — a critical safety function in modern heating equipment.
Key Features
- SPST (Single-Pole Single-Throw) switch action for reliable open/close circuit control
- Factory-calibrated pressure setting of 0.30″ W.C. (inches water column)
- Rated for use from sea level up to 4,000 ft. elevation
- Genuine Weil McLain OEM replacement part — SKU 511-624-532
- Designed to verify adequate combustion air and venting before burner operation
- Helps protect against unsafe operating conditions caused by blocked flue or inadequate draft
Application
This differential pressure switch is a key safety component in Weil McLain boiler systems. It senses the pressure differential created by the inducer blower during operation. If the required pressure differential is not achieved — indicating a potential venting or airflow problem — the switch remains open, preventing ignition and protecting the system and occupants from hazardous conditions.
Specifications
- Part Number: 511-624-532
- Brand: Weil McLain
- Switch Type: SPST (Single-Pole Single-Throw)
- Pressure Setting: 0.30″ W.C.
- Elevation Rating: Sea Level to 4,000 ft.
Why Choose Genuine OEM Parts?
Using genuine Weil McLain replacement parts ensures proper fit, function, and system warranty compliance. Non-OEM substitutes may not meet the precise calibration required for safe boiler operation. Trust the 511-624-532 for a drop-in replacement that restores your system to factory specifications.
