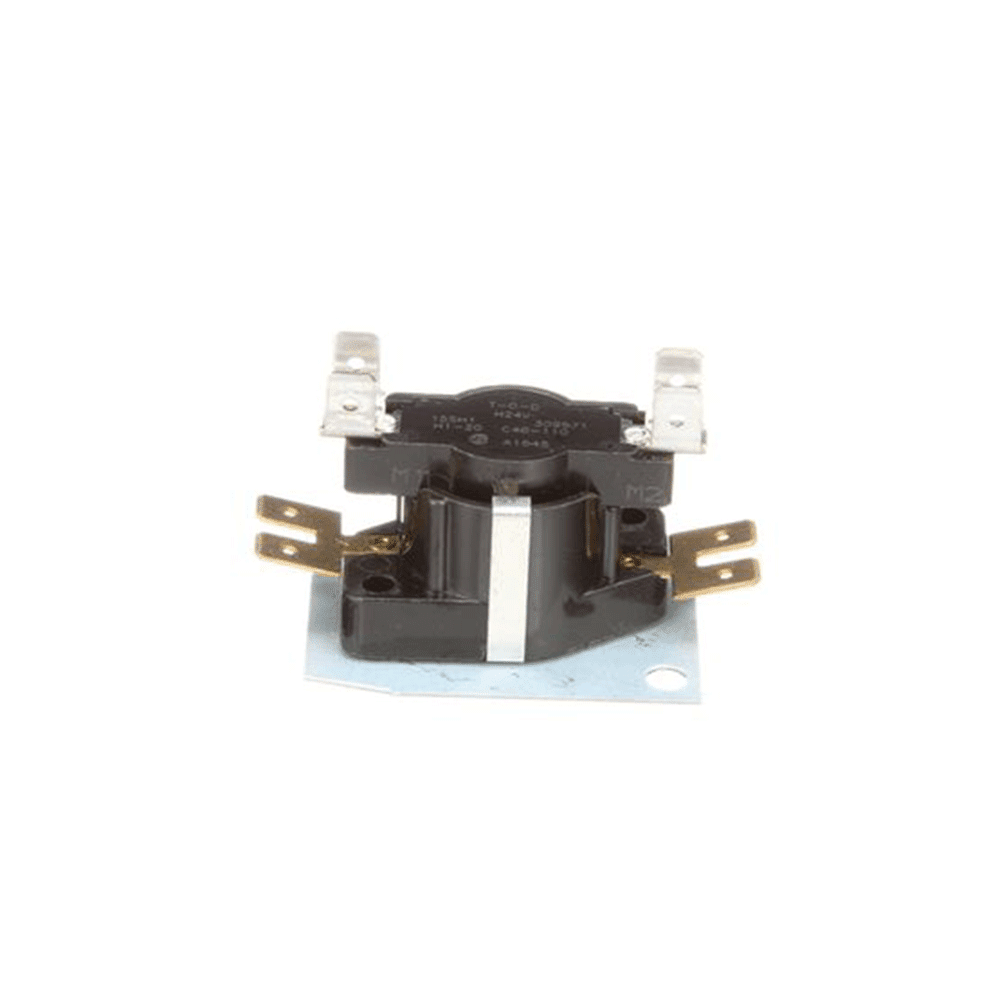

White-Rodgers 24A34-1 Electric Heat Sequencer with 1 Switch

BRAND: White-Rodgers SKU: 24A34-1

$11.99

MSRP: $26.98
You save 56%

Electric Heat Sequencer with 1 Switch 1-20 Second On Timing

Free Shipping
Ships Today
Availability:

1 In Stock

Description

The White-Rodgers 24A34-01 is a 1 timing, 1 switch electric heat sequencer direct replacement for most fan and heat sequencing functions.

Features
  • Replaces Honeywell, MARS, TOD, Gemline, Klixon (Texas Instruments)
  • 24V input control
  • Multi-poise mounting
  • Any contacts (except M1 & M2) can be used as auxiliary contacts
  • Double quick-connect terminals for combination loads
Specifications
  • Timings: 1
  • Switches: 1
  • Timings On:

    • M1-M2: 1-20
  • Timings Off:

    • M1-M2: 40-110
  • INDUCTIVE (MOTOR) FULL LOAD 120 VAC: 14.0A
  • INDUCTIVE (MOTOR) FULL LOAD 240 VAC: 7.0A
  • INDUCTIVE (MOTOR) LOCKED ROTOR 120 VAC: 72.0A
  • INDUCTIVE (MOTOR) LOCKED ROTOR 240 VAC: 42.0A
  • RESISTIVE (NONINDUCTIVE) 120 VAC: 25.0A, 3000W
  • RESISTIVE (NONINDUCTIVE) 240 VAC: 25.0A, 6000W
  • RESISTIVE (NONINDUCTIVE) 480 VAC: 12.5A, 6000W
  • PILOT DUTY: 120-240 VAC 125 VA

Documents

Reviews

There are no reviews yet.

Be the first to review “White-Rodgers 24A34-1 Electric Heat Sequencer with 1 Switch”

Compatible Products

A-1 Components
TDR10
DiversiTech
DGS101
Gemline
GS101
Global
24CZ-1
24ZC1
Goodman
B1290906
Hamilton
12HF
Industry No.
60000A0M
Interstate Electric
IES24A34-1
Klixon
60000AO64
60000AOM
60000AOMA012
Lennox
12F20
58C9701
Mars
33241
33841
Napco
NS101
Packard
HS24A341
Robertshaw
611-241
Supco
NS101
Q101
Q101, NS101
Therm-O-Disc
12S20
Watsco
TDR10
York
525-37322-000
Zettler
ZC24A34-1
ZC24A341-1
